HOMAG 4011040064 4-011-04-0064 Shuttle Valve 0821000003

• 4011040064 valve
• 4-011-04-0064 logic valves
• AVENTICS 0821000003
• CHANGE VALVE G 1/4 1-10 BAR
• Homag logic valves
• SHUTTLE Valve 0821000003
• AVENTICS Shuttle valves (OR) 0821000003
• 4011040064 0821000003 Pneumatic Valve
INQUIRY

HOMAG 4011040064 4-011-04-0064 Shuttle Valve 0821000003

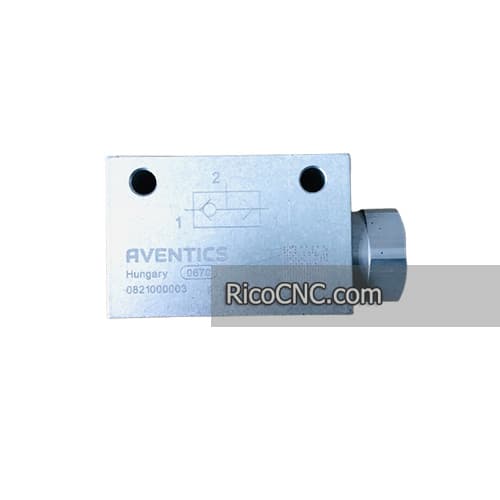

This is a shuttle valve for Homag machine, the Homag part number is 4011040064 4-011-04-0064. It is Aventics brand shuttle valve, the model number is 0821000003, G 1/4 1-10 BAR.

Specifications of HOMAG 4011040064 4-011-04-0064 Shuttle Valve 0821000003:

Sealing principle	Soft Seal
Type	Poppet valve
Medium	Compressed air
Max. particle size	5 µm
Oil content of compressed air min.	0 mg/m³
Oil content of compressed air max.	1 mg/m³
Logic function	Shuttle valves (OR)
Connection type	Pipe connection
Compressed air connection input	G 1/4
Compressed air connection output	G 1/4
Nominal flow Qn	1550 l/min
Working pressure min.	1 bar
Working pressure max	10 bar
Housing material	Aluminum
Seal material	Acrylonitrile butadiene rubber
Material threaded bushing	Aluminum, Steel
