Homag 4035012707 4-035-01-2707 AVENTICS 0822332211 Pneumatic Cylinder

• Homag 4035012707 cylinder
• AVENTICS 0822332211 cylinder
• AVENTICS Mini cylinder, Series MNI 0822332201
• 4-035-01-2707 Homag cylinder
• AVENTICS MNI-DA-16-0030-U-31-01-1-00-000-00
• Cylinder for Homag machines
• 4035012707
• 4-035-01-2707
INQUIRY

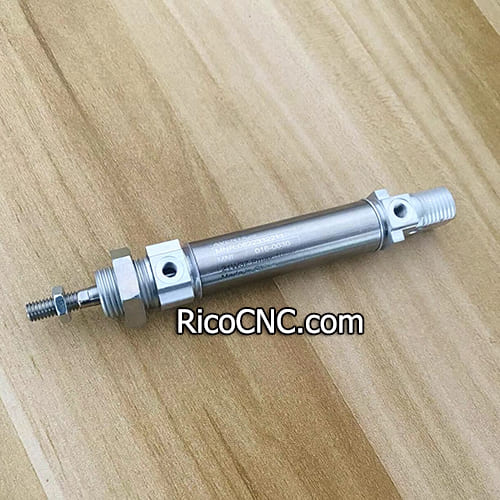

Homag 4035012707 cylinder.jpg

Homag 4035012707 4-035-01-2707 AVENTICS 0822332211 Pneumatic Cylinder

This is AVENTICS Mini cylinder, Series MNI 0822332201, MNI-DA-16-0030-U-31-01-1-00-000-00. It can be used Homag woodworking machines. Homag part number is 4035012707 or 4-035-01-2707.

Specification of AVENTICS 0822332211 cylinder:

Standards	ISO 6432
Piston Ø	16 mm
Stroke	10 mm
Functional principle	Double-acting
Cushioning	Elastic cushioning
Elastic cushioning	Magnetic piston
Magnetic piston	Piston with magnet
Environmental requirements	Industry standard, ATEX optional
Certificates	ATEX optional
Piston rod	single
single	Scraper
Scraper	Standard industrial scraper
Pressure for determining piston forces	6,3 bar
Retracting piston force	109 N
Extracting piston force	127 N
Min. ambient temperature	-25 °C
Max. ambient temperature	80 °C
Working pressure min.	1 bar
Working pressure max	10 bar
Ports	M5
Piston rod thread	M6
Impact energy	0.14 J
Weight	0.0965 kg
Weight 0 mm stroke	0.091 kg
Weight +10 mm stroke	0.0055 kg
Stroke max.	800 mm
Medium	Compressed air

RicoCNC can offer a wide range of Homag woodworking machine accessories.
If you are looking for spare parts for Homag machines, please don’t hesitate to contact us!
