2041946060 2-041-94-6060 HOMAG Lubricator FESTO 159621 LOE-1/4-D-MINI

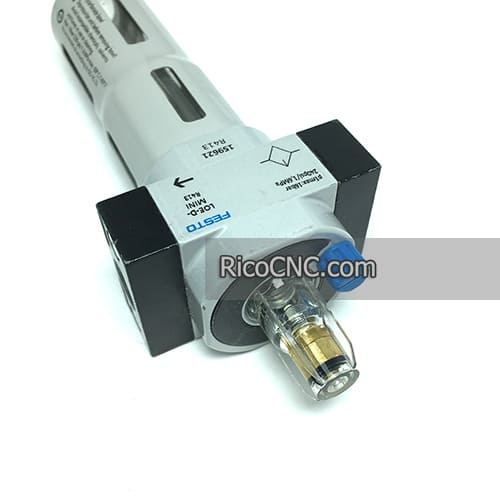

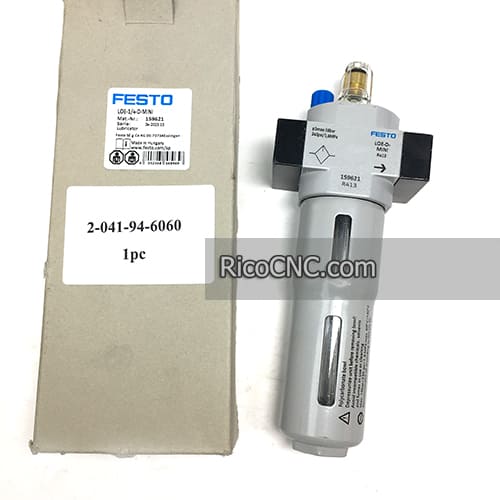

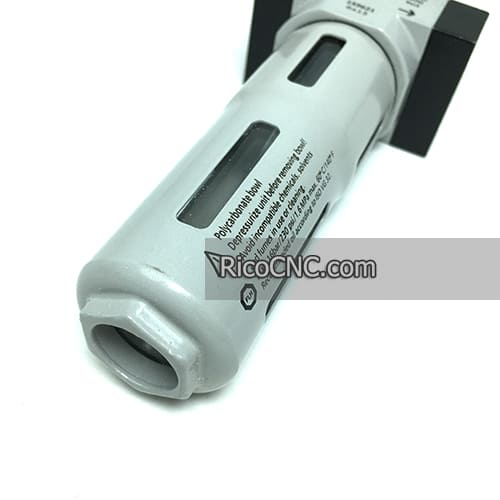

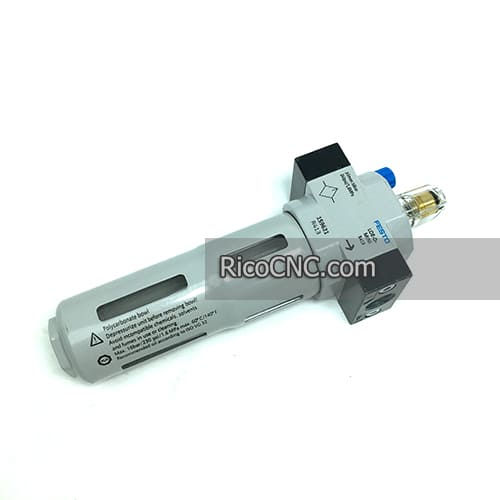

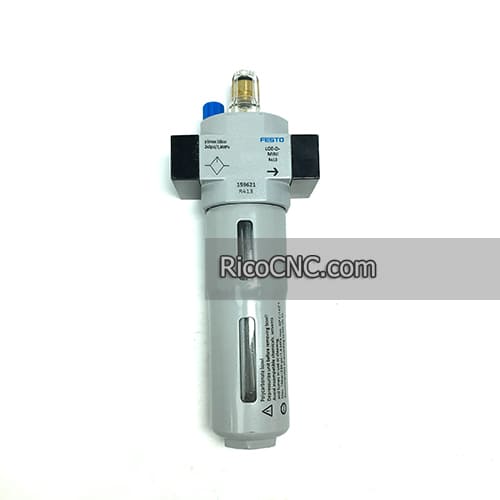

This is lubricator made from FESTO, it is LOE-D series mini lubricator, FESTO part number is LOE-1/4-D-MINI. It used for HOMAG machine, the HOMAG part number is 2041946060 2-041-94-6060.
2-041-94-6060 HOMAG Lubricator specification:
Type: Mini
Series: LOE-D
Port Size: 1/4 in
Flow Rate: 2300 Lpm
Pressure Range: 0 to 16 bar
Bowl Material: Polycarbonate
Material: Die Cast Zinc/Aluminum
FESTO 159621 LOE-1/4-D-MINI features:
The proportional lubricator adds a precision adjustable quantity of oil to the compressed air stream
The pressure drop that occurs when air flows through a venture nozzle is used to convey oil from the container to the drip cap
Reduces wear on drive units subject to high loading
High flow rate
Quick and easy oil top up
Robust metal housing
Transparent lubricator bowl with metallic bowl guard
Moderate corrosion stress
Mini: Grid dimension 40 mm without port blocks
Rico supplies various FESTO spare parts.
If any parts needed, please contact us for more information!
