60x20x30 Z2+2 PCD Premill Cutter Head For CEHISA Compact Edgebanders

60x20x30 Z2+2 PCD Premill Cutter Head For CEHISA Compact Edgebanders

• 60x20x30 Z2+2 premill cutter
• Cutter for CEHISA Edgebanders
• Cehisa edgebander parts
• Premilling cutter for CEHISA Edgebanders
• Left and right knife for edgebander
• 60mm diameter cutter
• Diamond milling cutter head
• Cutter head for edgebanding machine
INQUIRY

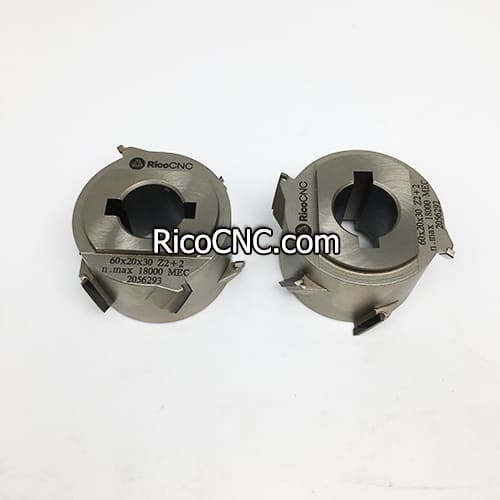

60x20x30 Z2+2.jpg

60x20x30 Z2+2 PCD Premill Cutter Head For CEHISA Compact Edgebanders

These tools are 60x20x30 Z2+2 PCD diamond jointing cutters, used on Cehisa compact edgebander. The dimension of the milling cutter head is diameter of 60mm, bore diameter of 20mm, height of 30mm, with diamond welded inserts. There is a left and a right side knife available.

Cehisa edgebander cutter.jpg

Specifications for 60x20x30 Z=2+2 premill cutter
Outer Diameter: 60mm
Bore Diameter: 20mm
Height: 30mm
Z=2+2
with diamond welded inserts
Cutter for CEHISA Edgebanders.jpg

RicoCNC can supply diamond Pre-Mill Cutters with the same dimensions and specifications as Leitz and leuco

Machine	D	SB	ND1	BO	Z	Type	LH Leitz	RH Leitz
Biesse	80	65	53	30 DKN	2x6	S2	192128	192128
Brandt	100	43.6	40.6	30 DKN	3x4	AS	90885	90886
Brandt, Törk Makine	100	65.2	40.6	30 DKN	3x6	AS	90887	90888
Felder	80	48.5	64	25 DKN	3x6	AS°4	192281	192282
Felder	80	64	64	25 DKN	3x7	AS°	192279	192280
Hebrock	70	43	61	25 DKN	2x4	AS	192237	192238
HolzHer	70	48	41	30 DKN	2x5	AS°	192222	192221
OTT	85	48	50	30 DKN	3x5	AS°	192209	192210
SCM	100	51	60	30 DKN	2x6	AS°	192215	192216

¹ ND = thickness of hub
² S = symmetrical cutting edge arrangement
³ AS = asymmetrical cutting edge arrangement
4 AS° = asymmetrical cutting edge arrangement with narrow teeth at the bottom

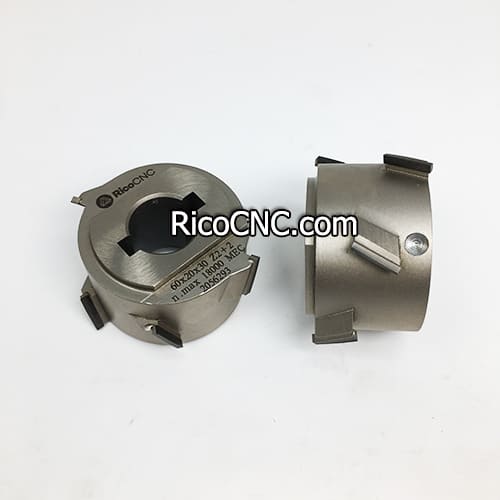

Premilling cutter for CEHISA Edgebanders.jpg

RicoCNC can offer a range of edgebander diamond jointing cutters or Homag, SCM, Stefani, Idimatic, IDM, Brandt, Biesse, Akron, Polymac, Stream, Casadei, CEHISA, FELDER, IDM, KDT, Fravol, IMA, Laguna, OAV, OTT, HolzHer, Hebrock, Bi-Matic and other edgebanding machine brands. The dimensions are the exactly same as the original OEM edgebanders.

Other edge bander cutters are available, including fine trimming cutters, rough trimming cutters, edge scrapers, inserts, etc
