D56x20x17 Z2 R1.3 edge rounding cutters For HOLZ-HER Aggregat 1827

D56x20x17 Z2 R1.3 edge rounding cutters For HOLZ-HER Aggregat 1827

• D56x20x17 Z2 R1.3 edge rounding cutters
• Suitable for HOLZ-HER Aggregat 1827
• 56mm diameter, 20mm bore diameter
• Replacement LEUCO 185435 R
• Replacement LEUCO 185434 L
• HOLZ-HER edgebander cutter
• Edge Rounding Cutters for HOLZ-HER
INQUIRY

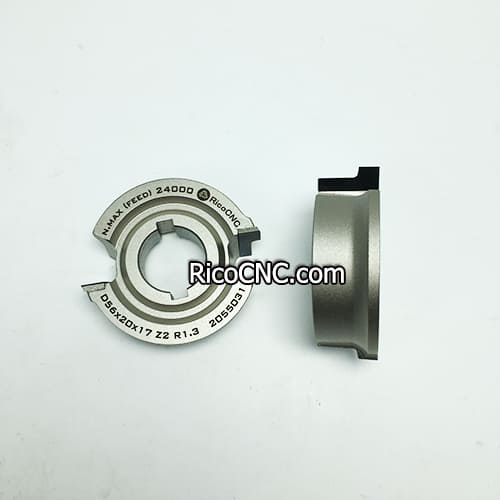

Cutters for HOLZ-HER Aggregat 1827.jpg

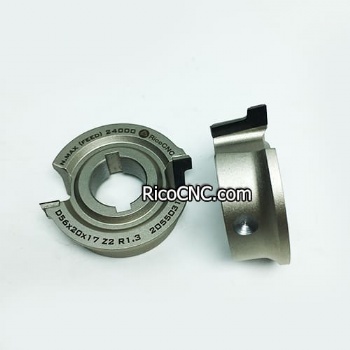

D56x20x17 Z2 R1.3 edge rounding cutters For HOLZ-HER Aggregat 1827

This is D56x20x17 Z2 R1.3 edge rounding cutters. It can be used on HOLZ-HER Aggregat 1827 edgebanding machines.

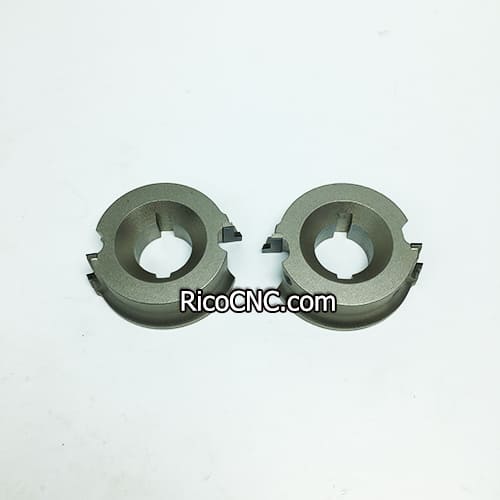

edge rounding cutters.jpg

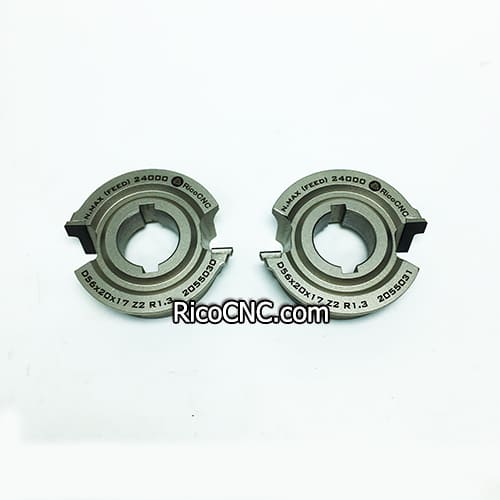

The cutting direction is available in left-hand and right-hand rotation.
It can replace LEUCO 185435 (right rotation) and LEUCO 185434 (left rotation).

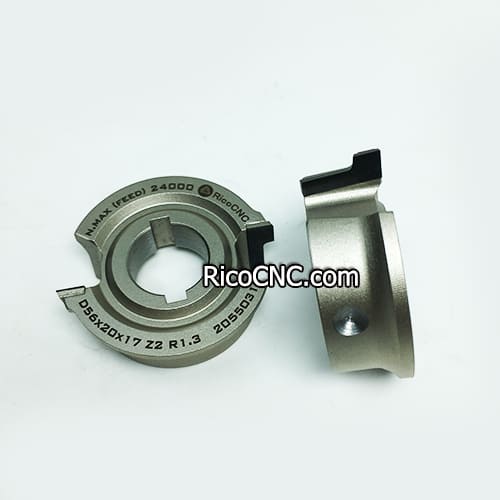

HOLZ-HER Edge Rounding Cutters.jpg

Specification of D56x20x17 Z2 R1.3 edge rounding cutters:

feature	Value
R = Radius	1.3 [mm]
Ø D = Flight circle diameter	56 [mm]
Ø D1 = Base flight circle diameter	50 [mm]
a = distance to the machine	8 [mm]
b = hub width	11.5 [mm]
Ø d = bore diameter	20 [mm]
Z = Number of teeth	2
DKN = Double keyway	5x2.3 [mm]
nmax = maximum speed	24,000 [min-1]
L/R = Cutting direction	185434 (left rotation) 185435 (right rotation)
Machine/Type	HOLZ-HER 1827
