Elap RE62110008 24R10LD5V Equivalent Encoder for Giben Prisma 3000 SP

Elap RE62110008 24R10LD5V Equivalent Encoder for Giben Prisma 3000 SP

• Elap RE62110008 / 24R10LD5V Encoder
• Pusher encoder for Giben Prisma 3000 SP
• ELAP RE62110008/24R10LD5V
• 63.5x63.5 mm square flange encoder
• Giben Beam Saw encoder
• Rotary encoder
• Panel saw encoder
INQUIRY

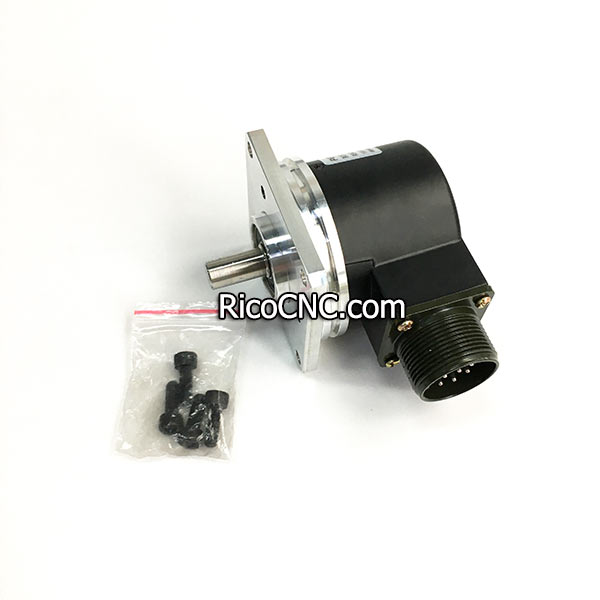

Elap RE62110008 24R10LD5V Equivalent Encoder for Giben Prisma 3000 SP

This rotary encoder is the equivalent encoder to replace ELAP RE62110008/24R10LD5V. It is widely used in Giben Prisma 3000 SP beam saw machines.

63.5x63.5 mm square flange
RE62110008 encoder dimensions

RE62110008 encoder size

RE62110008 Encoder Features:

The range of square-flanged incremental encoders, with centering mask diameter 31.75 mm, compatible with the international standard SIZE25, The pulses per revolution number ranges from 2 to 12500, The zero reference pulse option is available for all the series (type Elap RE621).
Incremental Encoder Square Flange Characteristics:
Max counting frequency 100 KHz – 200 KHz for ppr > 1000
Axial or radial connector outlet, equipped with the flying part – Axial or radial cable outlet, 3 m long cable (cable length 1 m with line driver output)
Output signals: NPN open collector, push-pull, 5 Vdc line driver (supply 5 or 8/24 Vdc), 8/24 Vdc line driver (supply 8/24 Vdc)
Protection against short circuit and polarity reversal
Aluminium case
IP64 protection degree (optional IP65 with O-ring mounted on the shaft)
Elap RE62110008.jpg

A range of spare parts for edgebander, beam saw machine accessories are available here.
RicoCNC also can supply other CNC spare tool parts, please contact us if you have any inquires!
