Black Air Flotation Ball Valves without Spring for Homag FORMAT 4 KAPPA Beam Saw Air Tables

Black Air Flotation Ball Valves without Spring for Homag FORMAT 4 KAPPA Beam Saw Air Tables

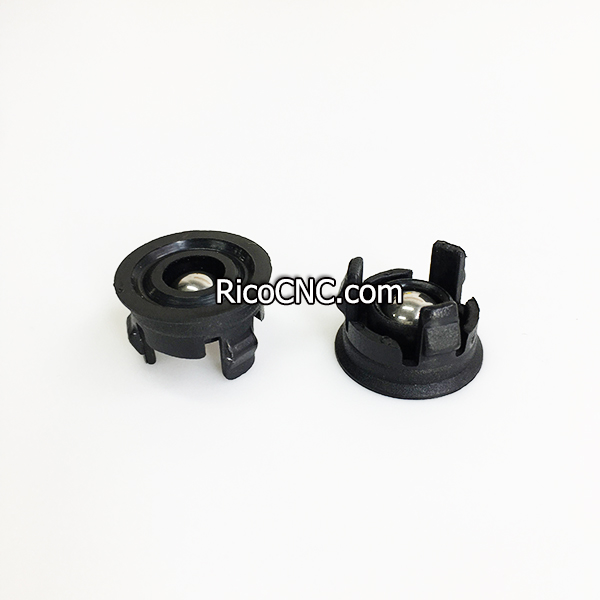

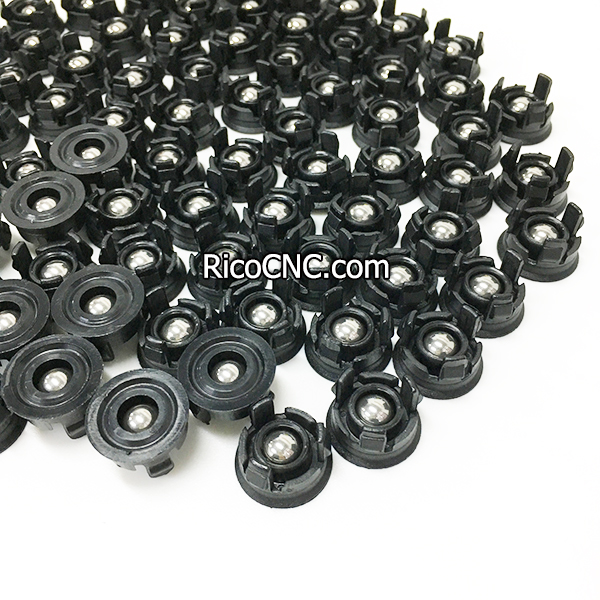

This black valve is an air table valve for the Homag and FORMAT 4 KAPPA beam saw and Mayer Saw PS80 floating table, suitable for beam saw air tables or other air tables.

Beam saw uses big circular saw blades to cut the wood panels into different sizes which we required. it is the most effective way to do the precise cutting job and maximize the cutting capacity. It is indispensable woodworking machinery.

Ball valves are integrated into the beam saw machine table surface. These release an airflow upon contact (placement of the workpiece) and thereby create the air cushion. So it will reduce the friction between the workpiece and the table surface. Thus the wood board will be easy to move, which can reduce workers' workload and improve efficiency.

These air table valves are widely used in beam saw Homag and FORMAT-4 Kapa automatic 100 air cushion tables for panel cutting.

Sizes for Air-cushion jets for panel saw air tables:
D = 20.5mm
D2= 18.1mm
H=15.2mm
H1=13mm
Without Spring

For this type of air float table valve, there is no spring. We can also offer Homag 2-052-66-2600 spring ball valve.

We can offer different types of air flotation table valves, for a panel saw machine such as SCM, Giben, Homag, Holzma, Biesse, Gabbiani, Selco, Macmazza, KDT, Nanxing, Selco, Felder, etc. Other beam saw machine spare parts are available here, beam saw curtain safety flap, pressure beam strip, and clamping Holder. Any needs, please feel free to contact us
