017-519166 Danfoss RT112 Type Pressure Switch for Industrial Automation

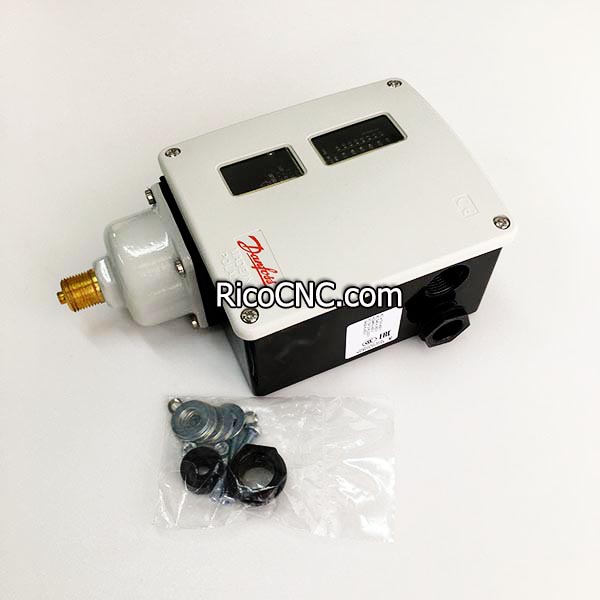

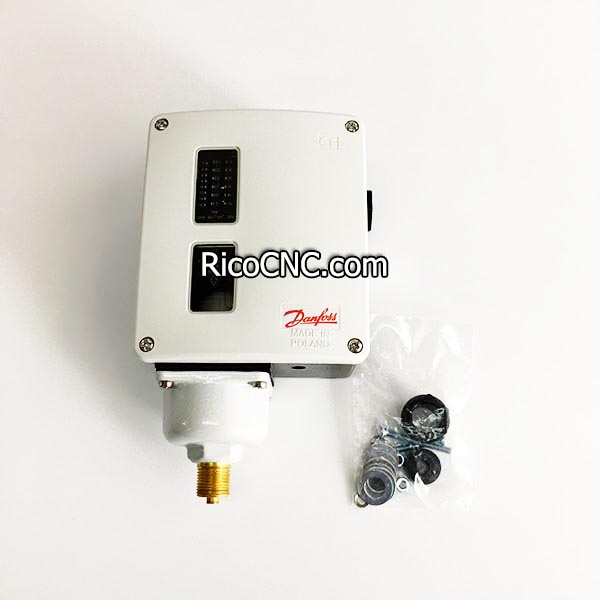

This pressure switch is Danfoss brand RT series switch with part number 017-519166. Danfoss is located in Denmark. With over 75 years experience of producing pressure controls for industrial applications, Danfoss offers the widest range of any manufacturer. The Danfoss range of industrial pressure switches measure and control the pressure of air and liquids.
Danfoss 017-519166 pressure switch.jpg

The Danfoss RT pressure switch contains a pressure-controlled single-pole switch, the position of which depends on the pressure at the inlet and the pressure setpoint. Pressure switches type RT are designed for industrial and marine refrigeration systems.
The RT series also includes differential pressure switches, pressure switches with adjustable neutral zone, and special pressure switches with gold contacts for special applications.
Danfoss Rt112 017-519166 Pressure Control.jpg

Features of RT112 Danfoss pressure switch:
• Product Code: 017-519166
• Pressure switch, Type: RT112,
• Regulation range [bar] Pe: 0.10 - 1.10,
• Differential [bar]: 0.07 - 0.16,
• Reset function: Auto,
• Pressure connection type: G,
• Pressure connection size: 3/8,
• Enclosure rating IP: IP66,
• Max. Working Pressure [bar]: 7.0
• Contact function: SPDT,
• Regulation range [psig] Pe: 1.50 - 16.00,
• Regulation range [bar] Pe: 0.10 - 1.10,
• Pressure Male/Female: Male
Advantages of RT pressure switch Danfoss RT112 017-51916
• Waterproof body.
• Wide range of regulation
• Large selection of products for industrial and marine installations
• Can work with both AC and DC current
• Replaceable contact group
• There are special modifications to work in special conditions
RT series pressure switch.jpg

Parameters of Danfoss 017-519166 pressure switch:

Characteristic

Value

Type

RT112

Weight

0.850 Kg

Ambient temperature [°C]

-50 - 70 °C

Ambient temperature [°F]

-58 - 158 °F

Ambient temperature [°C]

-50 - 70 °C

Ambient temperature range [°F]

-58 - 158 °F

Approval

BV, CCC, CE, DNV, GL, LR, NKK, RINA, RMRS

Contact function

SPDT

Contact rating

AC1=10 A, 400 V

Contact rating

AC15=3 A, 400 V

Contact rating

AC3=4 A, 400 V

Contact rating

DC13=12 W, 220 V

Contact rating

LR=28 A, 400 V

Differential

0.07 - 0.16 bar

Differential

1.00 - 2.30 psi

EAN

5702423120512

Electrical connection size

2xPg 13.5

Electrical specification standard

EN 60947-4/-5

Enclosure rating

IP66

Max. test pressure Pe

8.0 bar

Max. Working Pressure

7.0 bar

Max. Working Pressure

100 psig

Max. working pressure Pe

7.0 bar

Max. working pressure Pe

100,0 psig

Pressure connection

G 3/8

Pressure connection standard

ISO228-1

Pressure Male/Female

Male

Product description

Pressure Control

Product Design class

B

Regulation range Pe

0.10 - 1.10 bar

Regulation range Pe

1.50 - 16.00 psig

Reset function

AUTO

Danfoss RT112 pressure switch.jpg
Other models of Danfoss pressure switches are available at RicoCNC.
Danfoss switches are accurate, robust, built for long life, and perform flawlessly day after day, even under harshest conditions. If you are searching for Danfoss switches, please don’t hesitate to contact us.
