Sigma-II SGMGH-05DCA6F-OY 0.45kw High-speed Feed Type Rotary Servo Motors

Sigma-II SGMGH-05DCA6F-OY 0.45kw High-speed Feed Type Rotary Servo Motors

• SGMGH-05DCA6F-OY
• Sigma II series servo system
• SGMGH05DCA6FOY
• Yaskawa SGMGH-05DCA6F-OY
• Tapped dust seal
• SGMGH-05DCA6F-0Y 0.45 KW servomotor
• Rotary servo motors with 400 V AC encoder
• Sigma 2 Series servo motor
INQUIRY

Sigma-II SGMGH-05DCA6F-OY 0.45kw High-speed Feed Type Rotary Servo Motors

SGMGH-05DCA6F-OY Information:
• Small Sized Motor
• High Torque to Inertia Ratio
• Up to 3000rpm Maximum
• Optional Built in Holding Brake
• UL; cUL Recognized; CE Compliance

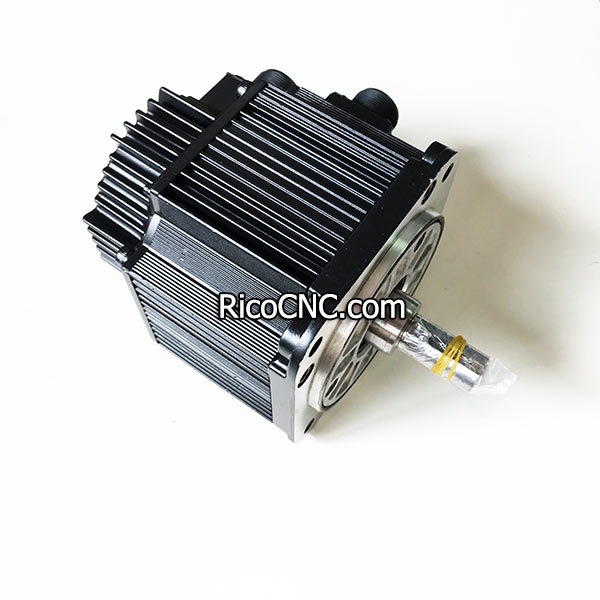

SGMGH-05DCA6F-OY servo motor.jpg

Yaskawa general purpose SGMGH Servomotors are designed to be compatible with previous generation G series motors. These motors offer ten types of rated outputs ranging from 0.79 to 1988in.lb of peak torque.
Yaskawa SGMGH.png

Type SGMGH, 400V
Ratings and Specifications:

Applied Voltage		400 V
Servomotor Model SGMGH-—		05D
Rated Output	kW	0.45
Rated Torque	Nm	2.84
Instantaneous Peak Torque	Nm	8.92
Rated Current	A (rms)	1.9
Instantaneous Max. Current	A (rms)	5.5
Rated Speed	min-1	15C
Max. Speed	min-1	3000
Torque Constant	N-m/A (rms)	1.64
Rotor Moment of Inertia (JM)	kgm2 x 10-4	7.24
Alowable Load Moment of Inertia (JL)	Multiple of (JM)	5
Rated Power Rate	kW/s	11.2
Rated Angular Acceleration	rad/s2	3930
Aplicable Encoder	Standard	Incremental Encoder (17 bits: 16384P/R)
Aplicable Encoder	Option	Absolute Encoder (17 bits: 16384P/R)
Holding Brake Moment of Inertia J	kgm2 x 10-4	2.10
Basic Specifications	Time Rating	Continuous
	Insulation Class	Class F
	Ambient Temperature	0 to +40° C
	Ambient Humidity	20 to 80% (non-condensing)
	Vibration Class	15pm or below
	Enclosure	Totally-enclosed, self-cooled, IP67 (excluding shaft opening)
	Vibration Resistance	Vibration acceleration 24.5m/s2
	Mounting	Flange-mounted

Sigma 2 Series servo motor.jpg

Applications for YASKAWA SGMGH-05DCA6F-0Y servo motors:
• Industrial robot joints
• Humanoid robot joints
• Equipment control in food processing machines
• Equipment control in packaging machines
• Belt drives in conveyor systems
• Automatic doors in trains
• X-Y tables used in LCD and semiconductor inspection machines
• Presses/roll feeders
• Rotating stages for machine tools or inspection systems
• Control of presses
• Control of bonding machines
• Control of plastic molding machines
• Control of amusement machines
• Radio control and other hobby applications
• Coating or vapor deposition machines
• Spin cleaning machines for LCDs and semiconductors
Yaskawa SGMGH-05DCA6F-OY.jpg

RicoCNC can supply both servo drive and servo motors with many brands such as Yaskawa, Mitsubishi, ToAuto, Delta, Panasonic, Fuji, etc.
Please contact us if you have any inquires!
