Left and Right Hand Carbide Tip Through Hole V-Point Wood Drilling and Boring Bits

Left and Right Hand Carbide Tip Through Hole V-Point Wood Drilling and Boring Bits

• Thru-hole boring bits for wood
• Wood boring drill bits
• Through-Hole boring bit
• Drill through bore holes for dowels, pins and screws
• Carbide tipped bore bit for wood
• Carbide tipped through-hole (v point) boring bits
• Throughfeed boring bits woodworking
• Through feed boring bits for drilling holes
INQUIRY

Thru-hole boring bits for wood.jpg

Left and Right Hand Carbide Tip Through Hole V-Point Wood Drilling and Boring Bits

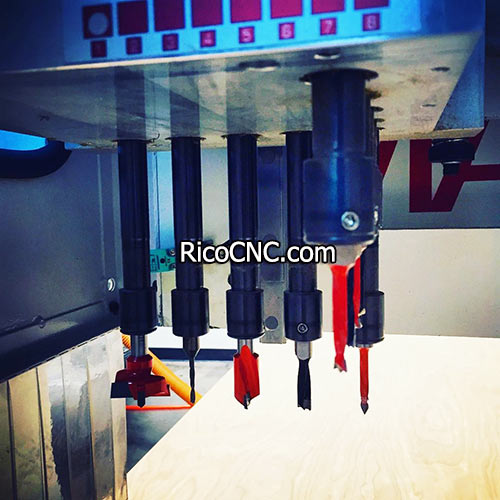

These carbide tipped through hole boring bits are designed to drill completely through the wood and produce clean dowel holes while eliminating break out. The boring bits are supplied with a 10mm shank with an adjustable top screw making them compatible with most boring machines and multiple spindle machines, CNC router centers.
Drill Bits for Wood.jpg

The smooth non-stick coating helps the wood chips slide up the hole boring drill bit and out of the hole while drilling. 10mm shank with driving flat and length adjusting screw.
Carbide tipped bore bit for wood.jpg

This through feed boring bits are coated with a special Polytetrafluoroethylene (PTFE), a non-stick color coating. The smooth non-stick coating helps the wood chips slide up the bit and out of the hole while drilling, leave a clean exit hole.

Wood boring drill bits.jpg

The left and right hand Thru-point boring bits are used for drilling thru-holes in drill all composition materials, solid surface materials, plywoods, hardwoods, softwoods, solid wood, wood composites, or plastic laminated materials. These drill bits have been extensively tested throughout the furniture and cabinet industry with excellent results.
Through-Hole Bits.jpg

There are sizes of left hand right hand through hole bore bits, and there are 57mm and 70mm long for choose:

Item No.	Direction	Drill Dia. (mm)	Blade Length (mm)	Overall Length (mm)	Shank Dia. (mm)
3*57L	Left Hand	3	21.5	57.5	10
3*57R	Right Hand	3	21.5	57.5	10
4*57L	Left Hand	4	28.5	57.5	10
4*57R	Right Hand	4	28.5	57.5	10
5*57L	Left Hand	5	28.5	57.5	10
5*57R	Right Hand	5	28.5	57.5	10
6*57L	Left Hand	6	28.5	57.5	10
6*57R	Right Hand	6	28.5	57.5	10
7*57L	Left Hand	7	28.5	57.5	10
7*57R	Right Hand	7	28.5	57.5	10
8*57L	Left Hand	8	28.5	57.5	10
8*57R	Right Hand	8	28.5	57.5	10
9*57L	Left Hand	9	28.5	57.5	10
9*57R	Right Hand	9	28.5	57.5	10
10*57L	Left Hand	10	28.5	57.5	10
10*57R	Right Hand	10	28.5	57.5	10
11*57L	Left Hand	11	28.5	57.5	10
11*57R	Right Hand	11	28.5	57.5	10
12*57L	Left Hand	12	28.5	57.5	10
12*57R	Right Hand	12	28.5	57.5	10
13*57L	Left Hand	13	28.5	57.5	10
13*57R	Right Hand	13	28.5	57.5	10
14*57L	Left Hand	14	28.5	57.5	10
14*57R	Right Hand	14	28.5	57.5	10
15*57L	Left Hand	15	28.5	57.5	10
15*57R	Right Hand	15	28.5	57.5	10

3*70L	Left Hand	3	34	70	10
3*70R	Right Hand	3	34	70	10
4*70L	Left Hand	4	41	70	10
4*70R	Right Hand	4	41	70	10
5*70L	Left Hand	5	41	70	10
5*70R	Right Hand	5	41	70	10
6*70L	Left Hand	6	41	70	10
6*70R	Right Hand	6	41	70	10
7*70L	Left Hand	7	41	70	10
7*70R	Right Hand	7	41	70	10
8*70L	Left Hand	8	41	70	10
8*70R	Right Hand	8	41	70	10
9*70L	Left Hand	9	41	70	10
9*70R	Right Hand	9	41	70	10
10*70L	Left Hand	10	41	70	10
10*70R	Right Hand	10	41	70	10
11*70L	Left Hand	11	41	70	10
11*70R	Right Hand	11	41	70	10
12*70L	Left Hand	12	41	70	10
12*70R	Right Hand	12	41	70	10
13*70L	Left Hand	13	41	70	10
13*70R	Right Hand	13	41	70	10
14*70L	Left Hand	14	41	70	10
14*70R	Right Hand	14	41	70	10
15*70L	Left Hand	15	41	70	10
15*70R	Right Hand	15	41	70	10

cnc bit for drilling holes.jpg
RioCNC offer a wide range of standard boring and drilling bits made in carbide tipped, solid carbide, and PCD tipped for including brad point bits, v point bits through hole bits, dowel drills, countersinks, plug cutters, hinge boring bits, tapered drill bits and more. We provide boring bits and drill bits for drill presses, CNC drill blocks, line boring machines, portable and handheld power drills and other machines.
