Ball Nose Conical Ball Solid Carbide Spiral 2D 3D Carving Tapered CNC Router Bits

Ball Nose Conical Ball Solid Carbide Spiral 2D 3D Carving Tapered CNC Router Bits

• Conical ballnose router bits
• Tapered ball nose spiral router bit
• Ball nose end mills
• Tapered end mill
• Up-cut tapered router bits
• CNC bits for 3d 2d carving
• Ball nose conical tapered spiral router bits
• Spiral tapered ball nose bits
INQUIRY

Ball nose conical tapered spiral router bits.jpg

Ball Nose Conical Ball Solid Carbide Spiral 2D/3D Carving Tapered CNC Router Bits

These 2 flutes tapered angle ball nose end mill / cone router bits for smooth engraving and clear the edge, for woodworking.
Conical ballnose router bits.jpg

Conical Ball nose bits are best for CNC router engraver machine, hand router trimmer, 3D carving for Plywood, Hardwood, plastic, MDF, Carbon steel, Inconel, stainless steel, etc.
Ball Nose Conical End Mills.jpg

Long service life, Decreasing the times of changing cutters, Saving production time.
Tapered Ball Nose Spiral Router Bit.jpg

Tapered Ball Nose Router Bits Applications:
• A perfect bit for 3D carving
• 2D and 3D contouring, profiling, modeling, and pattern making for cabinetry, sign making, furniture making, and jewelry mold making
• Dimensional signage
• 3D millwork
• Precision 2D and 3D large scale carving
• Great for deep profiling
• Perfect for model-makers on the large 3D milling profiles in abrasive EPS foam and other materials
Ball Nose Conical Ball.jpg

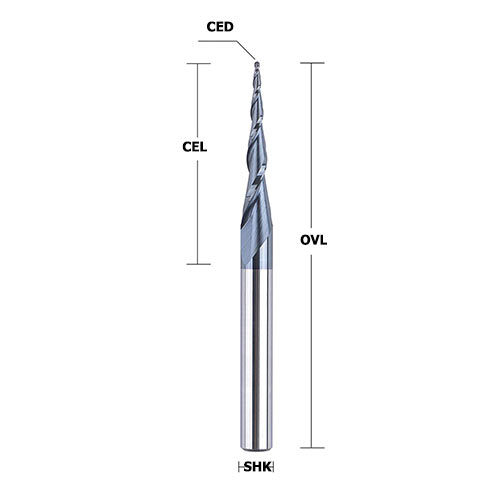

Conical ballnose router bits:

Item No.	CED(mm)	CEL(mm)	SHK(mm)	OVL(mm)
X2QX42010	1	20	4	50
X2QX62010	1	20	6	50
X2QX63010-60	1	30	6	60
X2QX63020-60	2	30	6	60
X2QX63010-70	1	30	6	70
X2QX63015-70	1.5	30	6	70
X2QX63020-70	2	30	6	70
X2QX63030	3	30	6	70
X2QX64010	1	40	6	80
X2QX64020	2	40	6	80
X2QX64030	3	40	6	80
X2QX83010	1	30	8	75
X2QX83020	2	30	8	75
X2QX83030	3	30	8	75
X2QX84010	1	40	8	85
X2QX84020	2	40	8	85
X2QX84030	3	40	8	85
X2QX86020	2	60	8	110
X2QX103520	2	35	10	80
X2QX103530	3	35	10	80
X2QX103540	4	35	10	80
X2QX104530	3	45	10	90
X2QX104540	4	45	10	90
X2QX125020	2	50	12	100
X2QX125030	3	50	12	100
X2QX126030	3	60	12	120
X2QX1210020	2	100	12	150

Woodworking Router Bits.jpg

RicoCNC also can supply other CNC router bits, such as:
UP cut 3 flutes spiral router bits,
Ball nose Carving Bits,
Two Flutes Carbide Up-cut Spiral Bit,
Single Flute Acrylic Cutting Bits: (specially for acrylic cutting),
CNC Router Bits for Aluminium Cutting,
2 Flutes Compression Router Bits,
3 Flute Compression Solid Carbide CNC Router Bits,
TCT double straight flutes router bits,
Single Flute Spiral Router Bits,
Straight Plunge Router Bits,
3 Flutes Chip-Breaker Spiral Bits,
Conical ball nose router bits,
Down Spiral Router Bit, etc.
Tapered End Mill.jpg
