Woodworking CNC Spiral Cutter Head Indexable CNC Router Spiral Bits with Carbide Insert

Woodworking CNC Spiral Cutter Head Indexable CNC Router Spiral Bits with Carbide Insert

• Woodworking Spiral Cutterhead
• Indexable CNC Router Spiral Bits
• Helix cutter heads for woodworking
• Woodworking CNC spiral cutterheads
• CERATIZIT indexable cutting inserts
• Milling & rebate router cutter head
• Insert tooling for wood
• Face milling cutter for wood cutting
INQUIRY

Indexable CNC Router Spiral Bits.jpg

Woodworking CNC Spiral Cutter Head Indexable CNC Router Spiral Bits with Carbide Insert

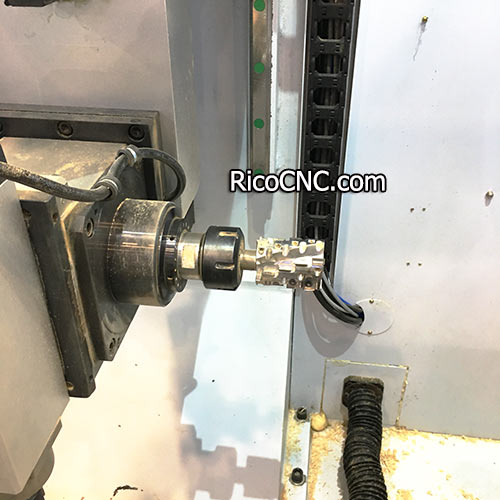

This indexable cutting tool is working with a CNC wood router. The spiral cutter head is designed for edge planning milling & rebating on solid hardwood.
Milling & Rebate Router Cutter Head.jpg

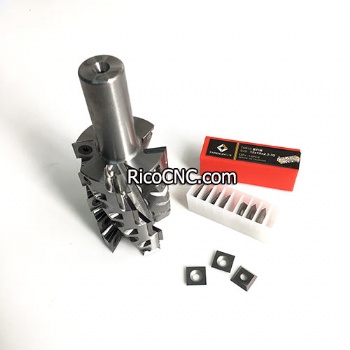

Indexable CNC Router Spiral Bits Feature:
• Heavy-cut spiral alloy milling cutter for routers, CNC machining center.
• Alloy steel tip body.
• With 12x12x2.2-35°inserts.
• Dislocation Sorting: Tangent point dislocation, the blade, and the workpiece surface contact smaller let the more smooth cutting.
• Universal knife holder: Suitable for machining center, tenon machine, etc.
• Carbide blades: indexable carbide blade, replaceable lock installation.
Spiral Cutterhead.jpg

Indexable CNC Router Spiral Bits Sizes reference:
Machines Woodworking Tool.jpg

Right Rotation:
D40xd20xH50mm
D50xd20xH50mm
D50xd20xH60mm
D50xd20xH80mm
D50xd20xH100mm
Other special specifications can be specified separately, left rotation also can be supplied!
