Solid Carbide CNC Aluminum Cutting Router Bits Up-Cut Router Bit with Mirror Finish

Solid Carbide CNC Aluminum Cutting Router Bits Up-Cut Router Bit with Mirror Finish

• Aluminum cutting router bits
• Router bit for aluminum
• Best router bit for aluminum
• Metal router bits
• 1 flute router bit for aluminum
• Aluminum Cutting
• Up-Cut router bit with mirror finish
• End mill bits for cutting aluminum
INQUIRY

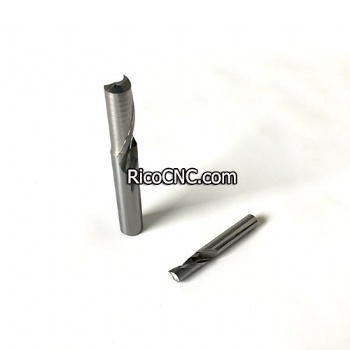

Alu cutting router bits.jpg

Solid Carbide CNC Aluminum Cutting Router Bits Up-Cut Router Bit with Mirror Finish

This 1 flute Aluminum cutting bit is made especially for Aluminum cutting. Top-quality solid carbide, single flute, upcut, specially designed for aluminum or aluminum composite panels milling.

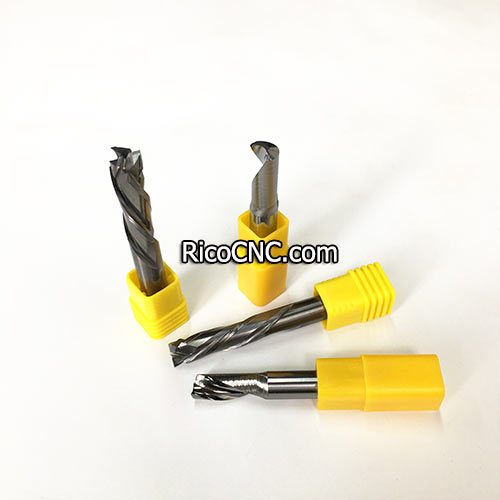

aluminum router bit.jpg

It is used only on CNC machines and routers with automatic feeding.
Using the highest quality sub-micro grain carbide, these bits have a special proprietary edge processing system featuring a super high polished cutting edge with a unique “mirror finish” resulting in clean cuts, less chance for chip re-welding, a superior surface finish, and longer tool life.

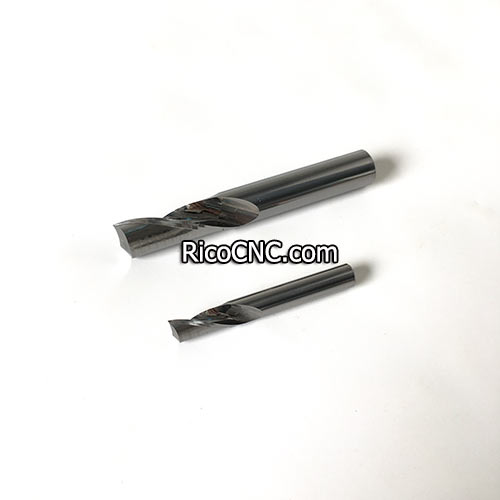

Aluminum Cutting Bits.jpg

Benefits of Mirror-Finish:
Razor-sharp cutting edge
Effortless chip removal
Helps prevent chip re-welding
Extends tool life
Exceptional cut quality
Dissipates heat well and prevents melting

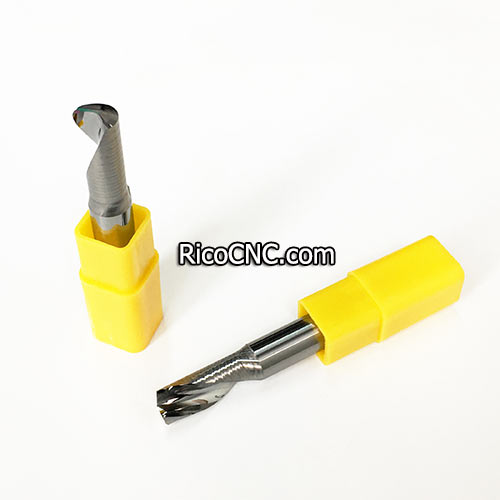

Best router bit for aluminum.jpg
CNC Router Bits for Aluminium Cutting:

cnc aluminum cutting bits.jpg

Item No	CED	CEL	SHK	OVL
AL1LX3.06	3.175	6	3.175	40
AL1LX3.08	3.175	8	3.175	40
AL1LX3.10	3.175	10	3.175	40
AL1LX3.12	3.175	12	3.175	40
AL1LX410	4	10	4	40
AL1LX412	4	12	4	40
AL1LX415	4	15	4	45
AL1LX512	5	12	5	45
AL1LX517	5	17	5	50
AL1LX612	6	12	6	45
AL1LX615	6	15	6	45
AL1LX617	6	17	6	50
AL1LX622	6	22	6	50
AL1LX820	8	20	8	60
AL1LX1025	10	25	10	70
AL1LX1230	12	30	12	80

Metal router bits.jpg

RicoCNC also can supply other CNC router bits, such as:
UP cut 3 flutes spiral router bits,
Ball nose Carving Bits,
Two Flutes Carbide Up-cut Spiral Bit,
Single Flute Acrylic Cutting Bits: (specially for acrylic cutting),
CNC Router Bits for Aluminium Cutting,
2 Flutes Compression Router Bits,
3 Flute Compression Solid Carbide CNC Router Bits,
TCT double straight flutes router bits,
Single Flute Spiral Router Bits,
Straight Plunge Router Bits,
3 Flutes Chip-Breaker Spiral Bits,
Conical ball nose router bits,
Down Spiral Router Bit, other CNC bits, etc.
