4 Flutes End Mill Upcut Spiral Carbide Router Bits for Wood Nylon Resin ABS Acrylic PVC MDF

4 Flutes End Mill Upcut Spiral Carbide Router Bits for Wood Nylon Resin ABS Acrylic PVC MDF

• Carbide four flutes router bit
• Flat top with 4-flute
• Upcut 4 flutes spiral bits
• End mill bit with 4 flute
• Upcut spiral router bit
• End mills and milling cutter
• CNC cutter tools
• 4 flutes CNC router bit
INQUIRY

4 Flutes End Mill Upcut Spiral Carbide Router Bits for Wood Nylon Resin ABS Acrylic PVC MDF

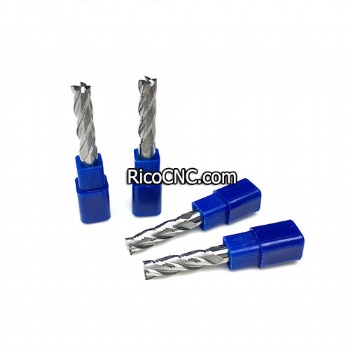

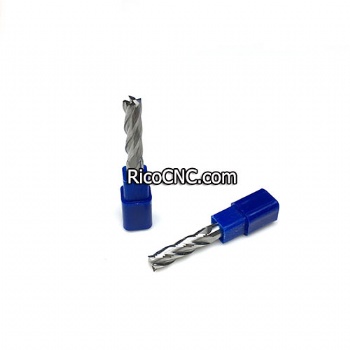

This solid carbide upcut spiral router bit is a multi-helix square bottom 4-flute end mill cutter for woodworking. Unique variable design for faster speeds and feeds provides quiet operation & better finish.

4 flutes spiral upcut router bits.jpg

For use with manual and automatic milling machines, as well as the most sophisticated CNC machines.
4 flutes spiral router bits.jpg

Excellent for wood cutting, rough cutting and finishing cutting.
4 flutes End mills.jpg

This 4 Flute bit is great for applications with a high feed rate or slow spindle speed.
Flat Top with 4-Flute.jpg
4 flute upcut solid carbide router bit sizes:

4T spiral bits.jpg

Item No.	CED (mm)	CEL (mm)	SHK (mm)	OVL (mm)
N4LX3.205	2.0	5	3.175	38
N4LX3.208	2.0	8	3.175	38
N4LX3.210	2.0	10	3.175	38
N4LX3.2.506	2.5	6	3.175	38
N4LX3.2.508	2.5	8	3.175	38
N4LX3.2.510	2.5	10	3.175	38
N4LX3.2.512	2.5	12	3.175	38
N4LX3.08	3.175	8	3.175	38
N4LX3.12	3.175	12	3.175	38
N4LX3.15	3.175	15	3.175	38
N4LX3.17	3.175	17	3.175	38
N4LX3.22	3.175	22	3.175	45
N4LX3.25	3.175	25	3.175	50
N4LX412	4	12	4	40
N4LX417	4	17	4	40
N4LX422	4	22	4	45
N4LX425	4	25	4	50
N4LX512	5	12	5	50
N4LX517	5	17	5	50
N4LX522	5	22	5	50
N4LX612	6	12	6	45
N4LX617	6	17	6	45
N4LX622	6	22	6	50
N4LX625	6	25	6	55
N4LX628	6	28	6	55
N4LX632	6	32	6	60
N4LX642	6	42	6	70
N4LX652	6	52	6	80
N4LX672	6	72	6	100
N4LX825	8	25	8	60
N4LX835	8	35	8	80
N4LX845	8	45	8	90
N4LX1025	10	25	10	60
N4LX1035	10	35	10	75
N4LX1045	10	45	10	90
N4LX1235	12	35	12	80
N4LX1245	12	45	12	90
N4LX1255	12	55	12	100

Carbide Four Flute Router Bit.jpg
RicoCNC also can supply other CNC router bits, such as:
UP cut 3 flutes spiral router bits,
Ball nose Carving Bits,
Two Flutes Carbide Up-cut Spiral Bit,
Single Flute Acrylic Cutting Bits: (specially for acrylic cutting),
CNC Router Bits for Aluminium Cutting,
2 Flutes Compression Router Bits,
3 Flute Compression Solid Carbide CNC Router Bits,
TCT double straight flutes router bits,
Single Flute Spiral Router Bits,
Straight Plunge Router Bits,
3 Flutes Chip-Breaker Spiral Bits,
Conical ball nose router bits,
Down Spiral Router Bit, etc.
End mill bit with 4 flute.jpg
