Down-cut Triple Flutes Solid Carbide Spiral Router Bits

Down-cut Triple Flutes Solid Carbide Spiral Router Bits

• CNC spiral 3 flute downcut bit
• Three flute spiral downcut finishers
• 3-Flute Downcut Spiral End Mill
• Down cut triple flutes bits
• 3 flute cnc downcut bits
• Triple flute spiral downcut router bit
• Carbide downcut router bits
• Carbide downcut inlay router bits
• Three flute spiral downcut finishers
INQUIRY

spiral downcut router bit.jpg

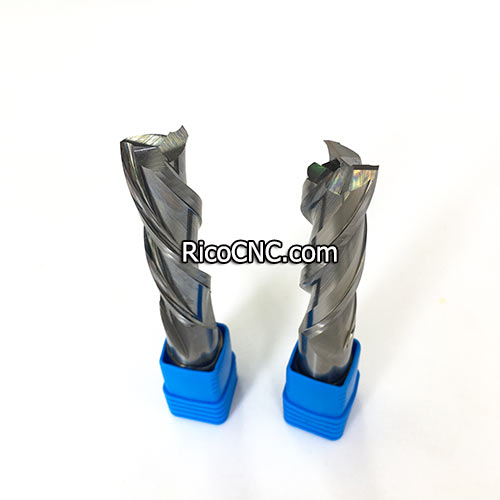

Down-cut Triple Flutes Solid Carbide Spiral Router Bits

Three flute spiral downcut finishers are designed to improve the finished material upper edges at feed rates similar to two flutes down cut spiral speeds.

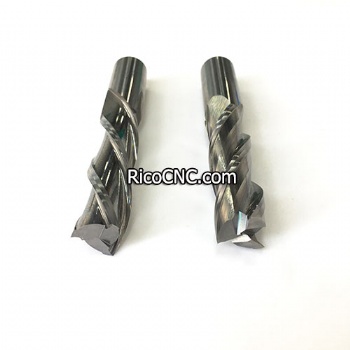

3 flutes downcut router bits.jpg
The down-cut spiral design provides the best top surface edges, ejecting chips away from the router when routing through material. This design also decreases the tendency to lift thin/small workpieces during CNC routing.
Down cut triple flutes bits.jpg

Down cut CNC end mills are great for dado, pocket, and inlay work as well as the final pass on most projects. These tools cut wood composites, solid surfaces, and natural wood.
3 Flute Downcut Bit.jpg

Excellent for cutting:
Laminate
Laminated Plywood
Melamine
Melamine Particle Board
MDF/HDF
Oriented Strand Board (OSB)
Particle Board
Softwood/Hardwood
Veneered Plywood
3 Flute Downcut Spiral bits.jpg

3 Flute Down-cut Solid Carbide CNC Router Bits Sizes:

Down cut spiral bits.jpg

Item NO	CED mm	CEL mm	SHK mm	OVL mm
3LXD3.12	3.175	12	3.175	40
3LXD417	4	17	4	50
3LXD617	6	17	6	50
3LXD622	6	22	6	55
3LXD825	8	25	8	70
3LXD835	8	35	8	80
3LXD1025	10	25	10	80
3LXD1035	10	35	10	90
3LXD12.35	12.7	35	12.7	90
3LXD12.45	12.7	45	12.7	100
3LXD1655	16	55	16	110
3LXD2075	20	75	20	150

CNC Spiral 3 Flute Downcut Bit.jpg

RicoCNC also can supply CNC router bits, such as: UP cut 3 flutes spiral router bits, Ball nose Carving Bits, Two Flutes Carbide Up-cut Spiral Bit, Single Flute Acrylic Cutting Bits: (specially for acrylic cutting), CNC Router Bits for Aluminium Cutting, 2 Flutes Compression Router Bits, 3 Flute Compression Solid Carbide CNC Router Bits, TCT double straight flutes router bits, Single Flute Spiral Router Bits, Straight Plunge Router Bits, 3 Flutes Chip-Breaker Spiral Bits, Conical ball nose router bits, Down Spiral Router Bit, etc.
