MS3102A-18-10P Circular Connector for MS 3108A-18-10S Yaskawa Servo Motors

MS3102A-18-10P Circular Connector for MS 3108A-18-10S Yaskawa Servo Motors

• MS3102A18-10P connector
• Industrial connector MS3102A18-10P
• MS3102A-18-10P circular connector
• Fit for MS 3108A-18-10S
• Female complement MS 3102A-18-10P
• MS3102A18-10P connector plug
• Used on servo motors
• Military connector
INQUIRY

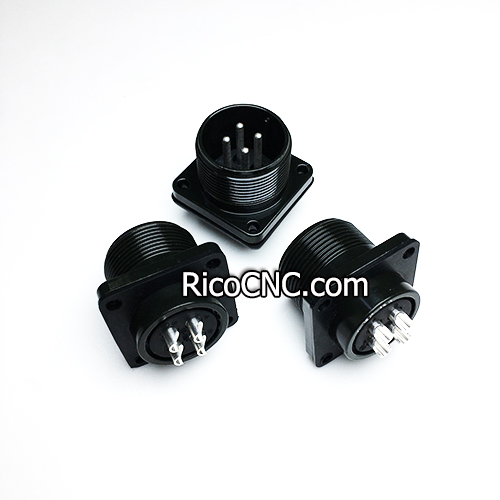

MS3102A18-10P connector.jpg

MS3102A-18-10P Circular Connector for MS 3108A-18-10S Yaskawa Servo Motors

This part is an MS3102A-18-10P circular connector, compatible with MS standard, 4 pos., panel mount receptacle. This military connector can be used on Yaskawa servo motors.

The MS3102A18-10P is a 4-contact military standard circular connector with silver-plated copper contacts, box mounting receptacle, solid shell for general, non-environmental applications, 18-10 insert arrangement, and pin contact type. Shell components are fabricated from high-grade aluminium alloy.

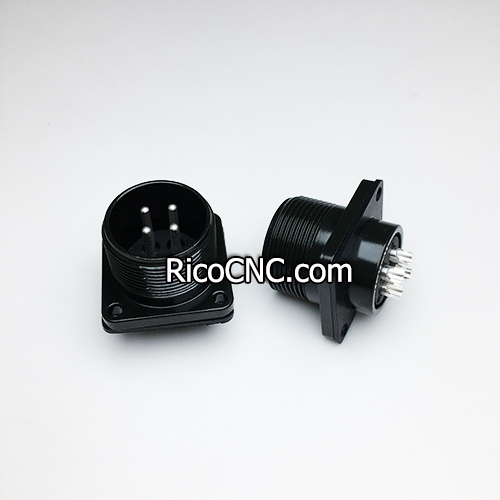

MS3102A18-10P connector plug.jpg

Specification of MS3102A18-10P connectors:

Shell Material	Aluminum Alloy
Shell Finish	Olive Drab Chromate over Cadmium
Contact Finish - Mating	Silver
Color	Olive Drab
Ingress Protection	-
Material Flammability Rating	-
Features	-
Shielding	Unshielded
Current Rating (Amps)	-
Voltage Rating	-
Cable Opening	1.000" (25.40mm)
Operating Temperature	-55°C ~ 125°C
Backshell Material, Plating	-
Contact Material	Copper Alloy
Contact Finish Thickness - Mating	-
Insert Material	Neoprene
Applications	Marine, Military
Base Product Number	MS3102A18

industrial connector MS3102A18-10P.jpg
Servo motors often have these flange-mounted connectors on them.
MS3102A-18-10P connector.jpg

RicoCNC is a reliable source for CNC machine replacement parts and components for Biesse, Homag, SCM, Weeke, and other common brands in the CNC industries.
Welcome to contact us to get the quote!
