ROKO SND04-N SND04-N2 Proximity Switch Sensor

ROKO SND04-N SND04-N2 Proximity Switch Sensor

• ROKO SND04-N
• SND04-N2
• Proximity switch sensor
• SND04-N N2 P P2
• Inductive proximity sensor
• Ultrasonic sensor
• Capacitive Proximity Sensors
• Magnetic Proximity Sensors
INQUIRY

ROKO SND04-N.jpg

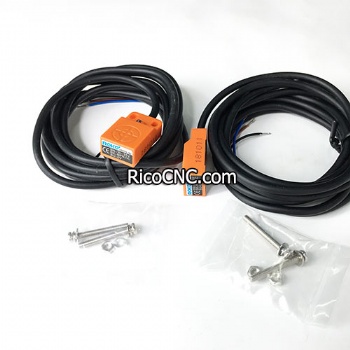

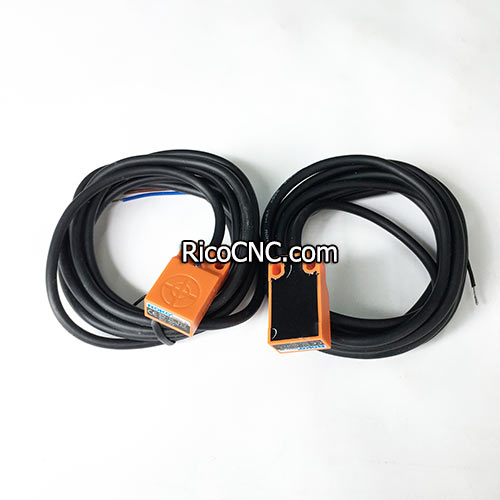

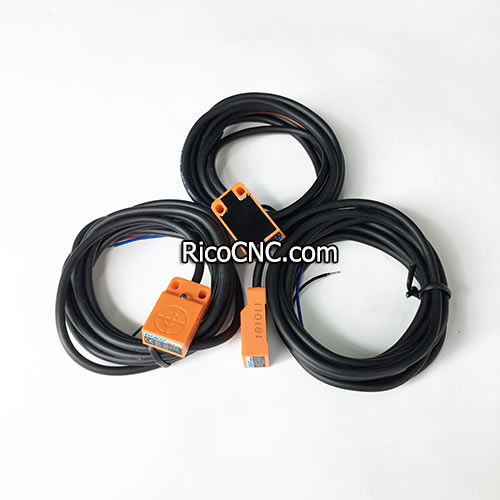

ROKO SND04-N SND04-N2 Proximity Switch Sensor

This SND04-N2 limit switch is made by Taiwan ROKO, widely used in CNC machines.
ROKO sensor.jpg

Proximity sensors are available in models using high-frequency oscillation to detect ferrous and non-ferrous metal objects and in capacitive models to detect non-metal objects.
Models are available with environment resistance, heat resistance, resistance to chemicals, and resistance to water.
SND04N2 Proximity Sensor.jpg

Usage: Level Sensor
Type: Vibration Sensor
Theory: Inductance Sensor
Output: Switching Transducer
Material: Polymer
Model: SND04-N N2 P P2
Category: Sensors
SND04 Inductive Proximity Switches Sensors.jpg

RicoCNC also can supply other ROKO proximity switch sensors as below:

roko limit sensors.jpg

Output Method	NPN.NO	SND04-N1	SND04-NK
	NPN.NC	SND04-N2	SND04-N2K
	PNP.NO	SND04-P1	SND04-PK
	PNRNC	SND04-P2	SND04-P2K
Sensing Surface		Top surface
Standard Sensing Object		Iron 18 xl8 xlmm
Sensing Distance		4mm
Secure Sensing Distance		< 3.2mm
Hysteresis		5 10 % of sensing distance
Response Frequency		600 Hz
Operating Voltage		10 ~ 30 VDC
Current Consumption		W 8 mA no-load
Load Current		200 mA Max
Leakage Current		W 1.1 mA no-load
Residual Voltage		5 0.7VDC
Protection Loop		Polarity loop protection and output short circuit protection
Insulation Resistance		20M 0 min. (500VDC)
Voltage With standability		1000VAC 60Hz for 60 Sec.
Operating Temperature		-25°C ~ + 70°C
Housing		ABS / PC
Protection Degree		IP 67
Wiring Method		Pre-wire 0>3.8 x 2M / 3-wires	M12 15cm
Weight		Approx. 60g	Approx. 25g
