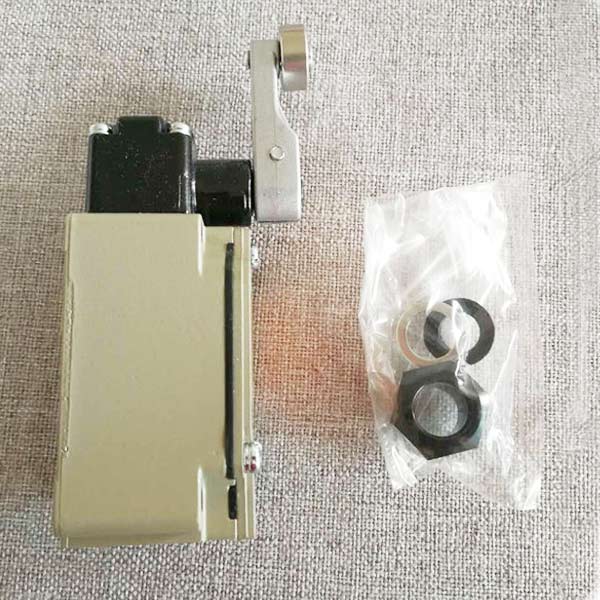

TZ-5104 Tend Limit Switch Travel Switch

TZ-5104 Tend Limit Switch Travel Switch
Brand Name: TEND
Model Number: TZ-5104
Protection Level: IP65
Operating Temperature: -10~+80C
Max. Current: 10A
Max. Voltage: 250V
PT Max.: 20°
OT Min.: 30°
MD Max.: 12°
Operating speed: 1mm to 2m/sec(TZ5104)
Contact resistance: 15mΩ max.(initial)
Insulation resistance: 100MΩ max.(at 500 VD
INQUIRY

Travel Switch.jpg

This is Tend TZ-5104 Wide selection of two-circuit double-break limit switch travel switch position switch.

Brand Name: TEND

Model Number: TZ-5104

Protection Level: IP65

Operating Temperature: -10~+80C

Max. Current: 10A

Max. Voltage: 250V

PT Max.: 20°

OT Min.: 30°

MD Max.: 12°

Operating speed: 1mm to 2m/sec(TZ5104)

Contact resistance: 15mΩ max.(initial)

Insulation resistance: 100MΩ max.(at 500 VD

Features

.Wide selection of two-circuit double-break limit switches

.Rifid die-cast switch housing

.Set position indicator plate for easy maintenance

.High mechanical strength

.Oil-tight,water-proof and dust-proof construction

Tend Limit Switch.jpg
