DAECHEONG Doosan Machine Tools 920602-00261-CS Push Rod Assy

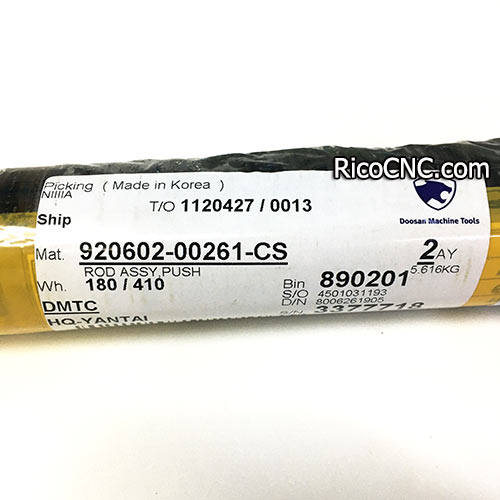

This Doosan machine tool 920602-00261-CS is the Push Rod Assy/ drawbar for ATC spindles. It is widely used in Doosan DNM500 and Doosan DNM 750L machines.
Doosan Drawbar.jpg

150123-00106B DNM drawbar is also available here.
Doosan spindle repair.png

CNC Machine Spindle Rebuild Corrective Action:

If the Belleville springs on your drawbar are damaged, you must replace the drawbar. The drawbar in inline spindles cannot be removed. If the drawbar in an inline spindle is damaged, you must replace the entire spindle assembly.

Check for tools getting stuck in the spindle, inspect the pull studs and spindle taper for damage.
ATC spindle draw bar.jpg

RicoCNC supplies a range of spare parts for CNC machine, the Belleville springs also are available here. If any needs, welcome your inquiry.
Drawbar Push Rod Assy.jpg

Doosan DNM500 Drawbar.jpg

Spindle drawbar.jpg

DOOSAN drawbar assembly.jpg

Drawbar Assy for Doosan DNM 750L.jpg
