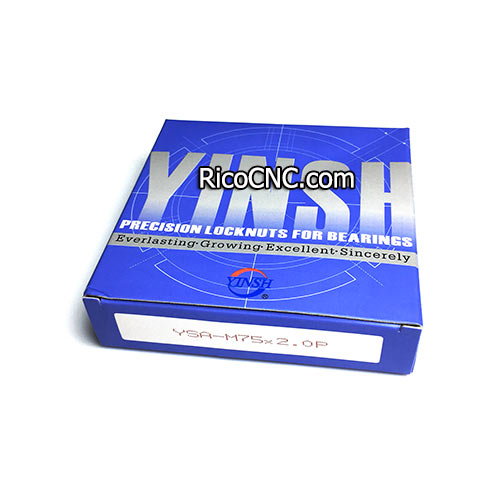

Precision YSA M75X2.0P Axial Locknuts for Bearings of Ball screws and Spindles
This YSA M75X2.0P locknut employs 3 way axial locking with the same thickness as the YSF series. 3 way axial locking is especially applicable to assembly work within special space constraints.
Can be freely, infinitely, and exactly positioned. Reliable locking without additional grooves or locking plates. Quick and precise assembly and disassembly.
Material Composition:SCM440(42CrMo4)
Hardness:HRC28° ~32°
• Thread Precision: ISO 4H
• Manufacturing Method:High Precision Grinding
• Run Out (M14~200:0.002mm)
• Manufacturing Method:High Precision Turning
• Run Out ( M14~200:0.005mm)
• Run Out (M210~300:0.007mm)
There are more models can be chosen:
Thread | D | h | g | t | d | n - m | MAX. Nm |
YSA M80 x 2 | 105 | 24 | 8 | 3.5 | 96 | 3-M8 | 18.0 |
YSA M85 x 2 | 110 | 24 | 8 | 3.5 | 102 | 3-M8 | 18.0 |
YSA M90 x 2 | 120 | 26 | 10 | 4 | 108 | 3-M8 | 18.0 |
YSA M95 x 2 | 125 | 26 | 10 | 4 | 113 | 3-M8 | 18.0 |
YSA M100x2 | 130 | 26 | 10 | 4 | 118 | 3-M8 | 18.0 |
YSA M105x2 | 140 | 28 | 12 | 5 | 125 | 3-M8 | 18.0 |
YSA M110x2 | 145 | 28 | 12 | 5 | 132 | 3-M8 | 18.0 |
YSA M115x2 | 150 | 28 | 12 | 5 | 137 | 3-M8 | 18.0 |
YSA M120x2 | 155 | 30 | 12 | 5 | 142 | 3-M8 | 18.0 |
YSA M125x2 | 160 | 30 | 12 | 5 | 147 | 3-M8 | 18.0 |
YSA M130x2 | 165 | 30 | 12 | 5 | 152 | 3-M8 | 18.0 |
YSA M135x2 | 175 | 32 | 14 | 6 | 160 | 3-M10 | 35.0 |
YSA M140x2 | 180 | 32 | 14 | 6 | 165 | 3-M10 | 35.0 |
YSA M145x2 | 190 | 32 | 14 | 6 | 175 | 3-M10 | 35.0 |
YSA M150x2 | 195 | 32 | 14 | 6 | 180 | 3-M10 | 35.0 |
YSA M155x3 | 200 | 34 | 16 | 7 | 180 | 3-M10 | 35.0 |
YSA M160x3 | 210 | 34 | 16 | 7 | 190 | 3-M10 | 35.0 |
YSA M165x3 | 210 | 34 | 16 | 7 | 190 | 3-M10 | 35.0 |
YSA M170x3 | 220 | 34 | 16 | 7 | 200 | 3-M10 | 35.0 |
YSA M180x3 | 230 | 36 | 18 | 8 | 205 | 3-M12 | 60.0 |
YSA M190x3 | 240 | 36 | 18 | 8 | 215 | 3-M12 | 60.0 |
YSA M200 x 3 | 250 | 38 | 18 | 8 | 225 | 3-M12 | 60.0 |
YSA-M210x3 | 260 | 38 | 18 | 8 | 240 | 3-M12 | 60.0 |
YSA-M220 x 3 | 270 | 38 | 18 | 8 | 250 | 3-M12 | 60.0 |
YSA-M230 x 3 | 280 | 40 | 20 | 9 | 258 | 3-M12 | 60.0 |
YSA-M240 x 3 | 290 | 40 | 20 | 9 | 268 | 3-M12 | 60.0 |
YSA-M250 x 3 | 300 | 40 | 20 | 9 | 278 | 3-M12 | 60.0 |
YSA-M260 x 4 | 310 | 40 | 22 | 10 | 288 | 3-M14 | 100.0 |
YSA-M270 x 4 | 320 | 40 | 22 | 10 | 298 | 3-M14 | 100.0 |
YSA-M280 x 4 | 330 | 40 | 22 | 10 | 308 | 3-M14 | 100.0 |
YSA-M290 x 4 | 340 | 42 | 24 | 11 | 315 | 3-M14 | 100.0 |
YSA-M300 x 4 | 350 | 42 | 24 | 11 | 325 | 3-M14 | 100.0 |
RicoCNC also can supply below models Yinsh precision locknuts:
YSF Flank Locking - Standard Locknut
YSR Radial Locknut
YSA Axial Locknut
YSK Precision Clasp Locknut
YSAM Locknut
YSFT Radial Flank Locknut
YSFTA Axial Flank Locknut
YSMSW Precision Clasp Locknut
