RIX EES-2P03 Rotary Joint for CNC Machine

RIX EES-2P03 Rotary Joint for CNC Machine

• RIX EES-2P03
• RIX rotary joint EES-2P03
• Rotary joint for CNC machine
• CNC machine tools
• EES-2P03 Rotary Joint
• Double Ports rotary joint
• Built-in bearing type EES-2P03
• Rotary union For turning machine for chucking
INQUIRY

RIX EES-2P03.jpg

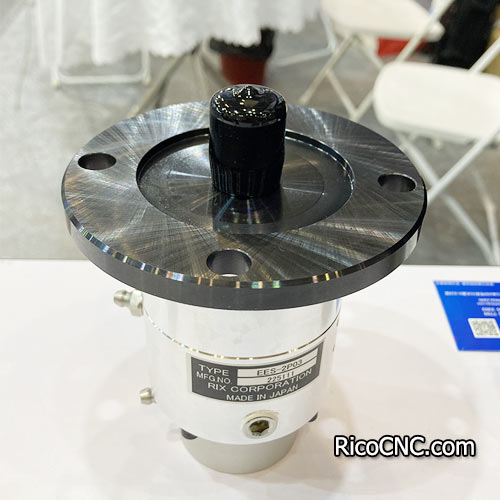

RIX EES-2P03 Rotary Joint for CNC Machine

This is a Rocky Rotary Joint for Machine tool, made by RIX. The part number is EES-2P03 . It can be used for YAMAZAKI MAZAK, MORI SEIKI, BROTHER, NIIGATA, TOYODA-KOUKI, OKUMA, HOWA, YASUDA, OKK, TSUGAMI, etc.

RIX is the top Five Rotary Joint brand for CNC Machine Spindles, RIX ROCKY Rotary Joints can be used in many applications.

Operating Specification (First Port)

Fluid	Coolant (Oil & Water Soluble)	Dry Air & Oil Air	Dry Air & Oil Air	Oil (VG2~32)	Oil (VG2~32)
Use	Through Coolant	Air Blow & Actuator	Mating Detection	Actuator	Actuator
Pressure (MPa)	7	*0.6	1	7	3.5
Pressure (psi)	1,015	*87	145	1,015	507
Pressure (bar)	70	*6	10	70	35
Max. speed (mim-1 & rpm)	8,000	8,000	4,000	4,000	4,500

Operating Specifications (Second Port)

Fluid	Dry Air & Oil Air
Use	Air Blow, Actuator & Mating Detection
Pressure (MPa)	0.2
Pressure (psi)	29
Pressure (bar)	2
Max. speed (mim-1 & rpm)	8,000

RicoCNC can supply various ROCKY JOINT: ESX20M-7566YSUS, ESX20M-7566 , ESX20J-NO12, L84J,LA95, LA96, LX84M-234, LX84V-234, LX84V-244, LX84M-244, LX86M-23, LX86M-244, LX86V-244, L91M-234, L92M-234, L92M-244, L95M-234, L95M-224, L96M-234, L96M-244, LX96M-02L-C, EES-2P01, LA-1P01, LA-1P02, ES50-1600, ES50-2000, ESX20-NO12, ESX20-NO16, ESX20M-TO10, ES20M-TO10, EES-2P01, ESX20-8834, ESX10-8678, L60, LX88M-9801, ESX20M-TO10, ES20M-TO10, ESX20V-LO12, ESX20V-LO16, ESX20M-SO12, ESX20M-SO16, ESX20M-EO12, ESX20M-E016, ESX20M-LO16, ESX20M-NO16, ESX20M-NO12, ESX20M-7566YSUS, ESX20M-7566, etc.

RIX EES-2P03.jpg

There are also other top 4 brand rotary joints can be supplied here: DEUBLIN Rotary Joint, ROTOFLUX Rotary Joint, OTT-JAKOB Rotary Joint, SMARTC Rotary Joint.

RicoCNC is a reliable CNC spare parts supplier based in China. You can find a number of CNC machine parts here, such as CNC tool holders, collets, nuts, pull stud, collet spanner, toolholder tightening fixture, tool holder forks, CNC machining center parts and edge banding machine parts.

Welcome to contact us if any inquires!
