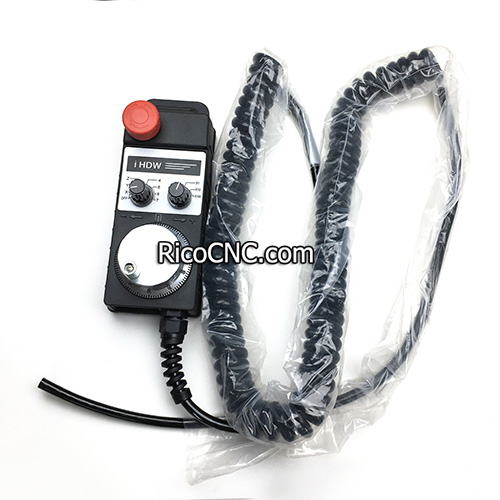

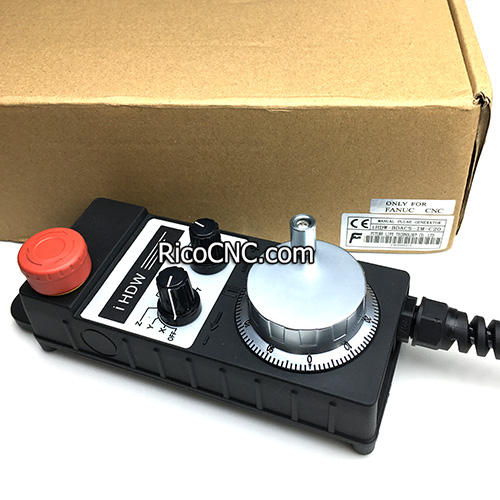

Akira Seiki iHDW-BDACS-IM-C20 Intelligent Remote Manual Pulse Generator MPG

Akira Seiki Intelligent Remote Manual Pulse Generator is the latest generation of remote MPG. Built-in LCD displays coordination and status of function. Designed for high level or large CNC machines.

iHDW-B:F:L Series.jpg

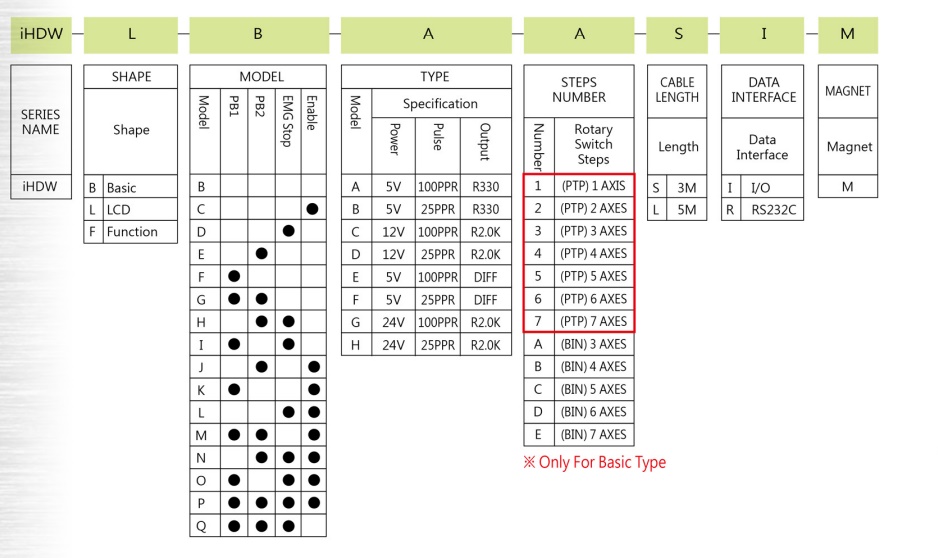

There are iHDW-B/F/L Series. iHDW-BDACS-IM-C20 is the Basic Type, EMG Stop, 5V power, 100PPR Pulse, Output R330, Step number Rotary Switch Steps: BIN 5 AXES, Cable length 3m, Date Interface I/O, Magnet.

iHDW-BFL Series.jpg

MFG iHDW-BDACS-IM-C20 Features:

• Receive messages from CNC control system

• Meet customers’ various demands

• Display data transferred by PLC digital I/O (serial out simulation) or RS232C

• Patented magnetic back cover

• Enabling switches for option

• Optional emergency stop switch

• Three types of model for option. Type B , F and L

• Type F offers 6 key switches for option

• Multiple output types compatible with different CNC control systems

• Provide reverse polarity protection

• Easy to handle

• Oil & waterproof design

iHDW TYPE B Series MPG.jpg

iHDW-BDACS-IM-C20 specification:

Electrical	Power Supply	DC 5V, DC 12V, DC 24V (±10%)
	Pulse Number	25PPRor 100PPR
	Output Current	100mA
	Signal Mode	A, B or A, Ā, B, B
	Response Frequency	5KHz
	Power Consumption	100mA ~ 150mA
Communication	Communication Interface	Digital I/O, RS232C
	Data Format	8 data bits +1 parity bit (even), 1 stop bit
	Transfer Speed	9600 baud, automatic detection
Mechanical	Rotating Torque	250 gf.cm
	Rotating Life	1,000,000 min
	Material	Plastic
	Weight	Approx. 1kg
Environmental	Operating Temperature	0°C/+ 50°C
	Storage Temperature	-10°C /+60°C (w/o condensation)
	Humidity	35%/85%
	Vibration	0.5G X, Y, Z each direction 2h
	Shock	2G X, Y, Z each direction 3 times
