CNC Tool Holder ISO25 ER25 Collet Chuck 35mm Length for ATC Spindle

CNC Tool Holder ISO25 ER25 Collet Chuck 35mm Length for ATC Spindle

• Model: ISO25-ER25-35L collet chuck
• Including clamping nut and pull stud.
• Collet Type: ER25 A=35
• For ISO25 auto tool changer spindle
• ISO25 tapered tool holder
• China ISO 25 tool holder
• ISO25/ER25 tool holder cone
• Toolholder ISO25-ER25 for sale
INQUIRY

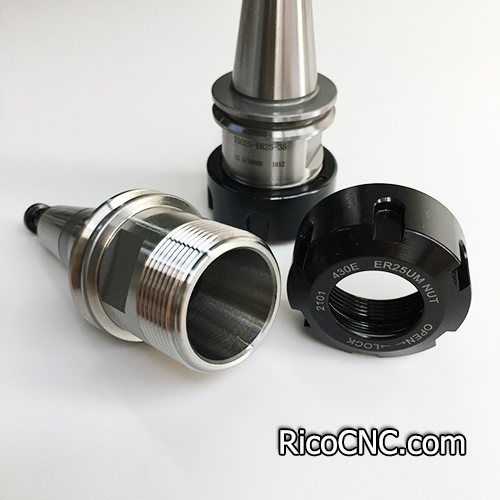

ISO25 ER25 collet chuck.jpg

CNC Tool Holder ISO25 ER25 Collet Chuck 35mm Length for ATC Spindle

This ISO25 collet chuck is fit with ER25 collet and nut. This ISO25 ER25 tool holder is suitable for automatic tool changer spindles, widely used in CNC routers, CNC milling machines.

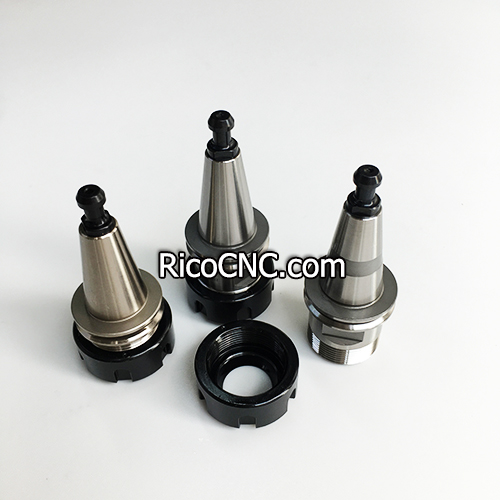

ISO25 ER collet chuck.jpg

Description of ISO25 Tool Holder Cones
Model.: ISO25-ER25-35L A=35
Material: stainless steel
Hardness: 48-52
Precision: no more than 5μ
Balance Grade: G2.5 @ 30,000 rpm
Collet Size: ER25
Usage: CNC routers, CNC milling machines
ISO25 Tool holder completed with nut and pull stud
Maintenance: always make sure the threads are clean and slightly lubricated before tightening your tooling. collet nut should go on smoothly
ISO25 ER tool holder.jpg

Spanners to tighten and remove collet can be purchased separately if needed.
ISO25 tool holder.jpg

RicoCNC can offer a range of CNC tool holders, plastic tool grippers, collets, such as ISO20, ISO30, BT30, HSK63F. If you are looking for a spare part for your CNC machine, please feel free to contact me.

CNC ISO25 tool holder.jpg
