Two Flute Ball Nose Up-Cut Spiral Solid Carbide CNC Router Bit

Two Flute Ball Nose Up-Cut Spiral Solid Carbide CNC Router Bit

• Ballnose Router Bits
• Ball Nose CNC Router Bit
• 3D CNC milling and carving bits
• Round Groove Router bit
• 2 flutes wood carving bits
• Up-Cut Ball Nose Spiral Bit
• Ball-Nose Spiral Router Cutters
• Two flutes ball nose router bits
INQUIRY

Ballnose Router Bits.jpg

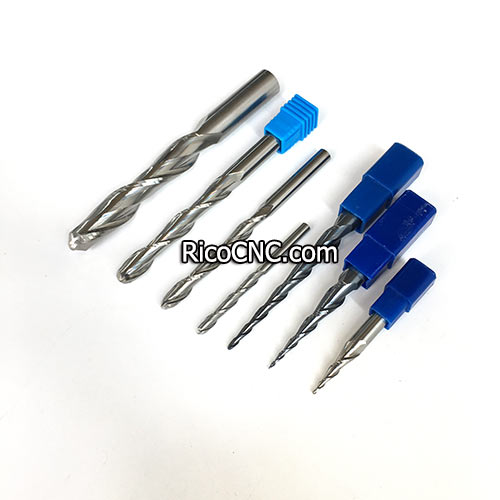

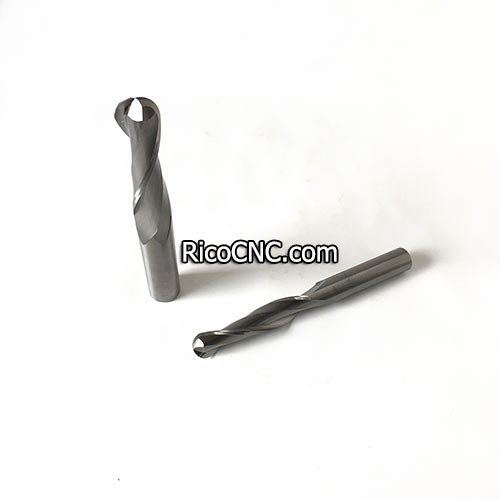

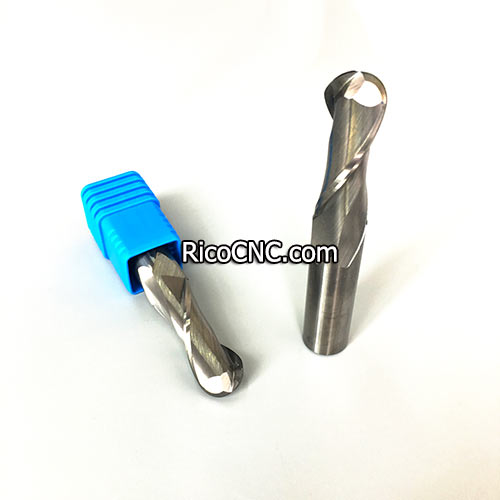

Two Flute Ball Nose Up-Cut Spiral Solid Carbide CNC Router Bit

2 flutes ball nose spiral end mills are used for smooth contouring and fine detail passes with a CNC router and often for complex shapes like 3D carvings.
2 flutes wood carving bits.jpg

These bits are also excellent for routing fluted columns and channels in cutting boards and countertops edges.
Round Groove Router bit.jpg

Use these CNC bits to enjoy fast cutting action and smooth, contoured cuts on a wide range of 2D and 3D carvings. Small diameter ball nose end mills are used for projects with intricate detail while larger bits are used for smoother projects with more gradual slopes.
Ball-Nose Spiral Router Cutters.jpg

Ballnose Router Bits Features:
1. Precision machining by high accurate equipment;
2. With good milling and cutting performance, ensuring high efficiency;
3. High hardness, wear resistance, and intensity; anti-bending;
4. To remove chips, with big space and small resistance; Smooth chip removal, less heating value, to reduce pollution;
5. Sharp cutting edge, reduce cutting force, lower breaking rate, and improve the quality of hole wall;
6. Symmetrical cutting blade, help to high effective cutting, avoiding drilling offset.
ballnose router bits sizes.jpg

Ball nose Carving Bits Sizes:

Item No.	CED (mm)	CEL (mm)	SHK (mm)	OVL (mm)
N2QX3.0.803	0.8	3	3.175	38
N2QX3.104	1	4	3.175	38
N2QX3.1.204	1.2	4	3.175	38
N2QX3.12	3.175	12	3.175	38
N2QX3.15	3.175	15	3.175	38
N2QX3.17	3.175	17	3.175	38
N2QX3.20	3.175	20	3.175	45
N2QX3.22	3.175	22	3.175	45
N2QX3.25	3.175	25	3.175	50
N2QX3.28	3.175	28	3.175	55
N2QX3.32	3.175	32	3.175	60
N2QX412	4	12	4	40
N2QX417	4	17	4	40
N2QX422	4	22	4	45
N2QX425	4	25	4	50
N2QX428	4	28	4	55
N2QX432	4	32	4	60
N2QX442	4	42	4	70
N2QX452	4	52	4	80
N2QX517	5	17	5	50
N2QX522	5	22	5	50
N2QX612	6	12	6	45
N2QX617	6	17	6	50
N2QX622	6	22	6	50
N2QX625	6	25	6	55
N2QX628	6	28	6	55
N2QX632	6	32	6	60
N2QX642	6	42	6	80
N2QX652	6	52	6	90
N2QX672	6	72	6	110
N2QX6.17	6.35	17	6.35	50
N2QX6.22	6.35	22	6.35	50
N2QX6.25	6.35	25	6.35	55
N2QX6.32	6.35	32	6.35	60
N2QX825	8	25	8	60
N2QX835	8	35	8	80
N2QX845	8	45	8	90
N2QX855	8	55	8	100
N2QX1025	10	25	10	60
N2QX1035	10	35	10	80
N2QX1045	10	45	10	90
N2QX1055	10	55	10	100
N2QX1235	12	35	12	80
N2QX1245	12	45	12	90
N2QX1255	12	55	12	100
N2QX1265	12	65	12	110
N2QX1275	12	75	12	120
N2QX12.35	12.7	35	12.7	80
N2QX12.45	12.7	45	12.7	90
N2QX12.55	12.7	55	12.7	100
N2QX1645	16	45	16	110
N2QX1655	16	55	16	120
N2QX1675	16	75	16	150
N2QX2075	20	75	20	150

Ball Nose CNC Router Bit.jpg

RicoCNC also can supply other CNC router bits, such as:
UP cut 3 flutes spiral router bits,
Ball nose Carving Bits,
Two Flutes Carbide Up-cut Spiral Bit,
Single Flute Acrylic Cutting Bits: (specially for acrylic cutting),
CNC Router Bits for Aluminium Cutting,
2 Flutes Compression Router Bits,
3 Flute Compression Solid Carbide CNC Router Bits,
TCT double straight flutes router bits,
Single Flute Spiral Router Bits,
Straight Plunge Router Bits,
3 Flutes Chip-Breaker Spiral Bits,
Conical ball nose router bits,
Down Spiral Router Bit,
PCB router bits, etc.
