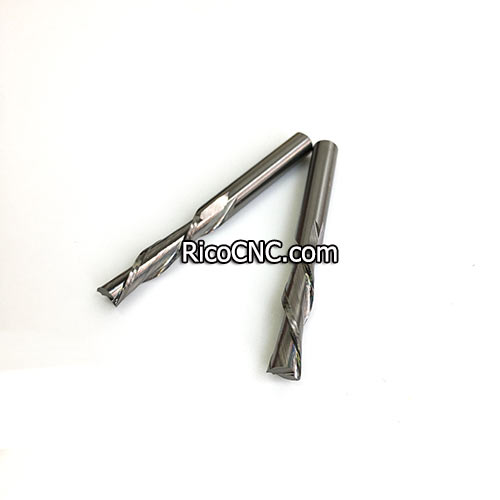

Down-cut 2 Flutes Solid Carbide Spiral Router Bits for Wood Cutting

Down-cut 2 Flutes Solid Carbide Spiral Router Bits for Wood Cutting

• Solid carbide downcut spiral bits
• Down cut spiral router bit
• Spiral down-cut router bits
• 2 flute down-spiral bit
• Solid carbide bits
• 2 flute down spiral bit
• Down cut bit for wood cutting
• Down cut CNC router bits
• Down cut router bit
INQUIRY

2 flute down spiral bit.jpg

Down-cut 2 Flutes Solid Carbide Spiral Router Bits for Wood Cutting

These 2 flutes down-cut spiral bits can be used for cutting grooves, dadoes, and inlays.

2 blades downcut spiral cutting.jpg

Down cut bits don't clear chips as quickly as up-cut spiral bits but their down cut geometry pushes wood fibers down into the cut, leaving a cleaner top surface on your workpiece with minimal tear-out.
2 Flute Downcut Spiral Bit.jpg

Down-cut Router Bits Technical Features:
• Premium quality solid carbide
• 2 spiral cutting edges
• Provide an excellent finish on both the upper and the lower sides of the workpiece.
• For through cutting where downward pressure and chip removal is desired
• Micrograin solid carbide – ensures consistently smooth finish cuts, with superior wear resistance
• Downcut design – for template cutting when downward pressure and chip removal is advantageous
• Industrial/CNC bit – for high-duty cycle applications
• Solid carbide build – provides the best rigidity and long life, for faster feed rates and chip removal, hard-to-route materials, and superior bit life
• Upgraded micro-grain carbide – engineered for precise cuts and long bit life
DOWN CUT SPIRAL.jpg

Downcut bits do require a slower feed rate and a lighter depth of cut is preferable.

Down Spiral Router Bit Models:

Item No.	CED (mm)	CEL (mm)	SHK (mm)	OVL (mm)
A2LXD3.12	3.175	12	3.175	40
A2LXD417	4	17	4	50
A2LXD617	6	17	6	50
A2LXD622	6	22	6	55
A2LXD625	6	25	6	60
A2LXD825	8	25	8	70
A2LXD1025	10	25	10	80
A2LXD1035	10	35	10	90
A2LXD12.35	12.7	35	12.7	90
A2LXD12.45	12.7	45	12.7	100

Spiral Downcut Router Bits.jpg

RicoCNC also can supply CNC router bits, such as: Ball nose Carving Bits, Two Flutes Carbide Up-cut Spiral Bit, Single Flute Acrylic Cutting Bits: (specially for acrylic cutting), CNC Router Bits for Aluminium Cutting, 2 Flutes Compression Router Bits, 3 Flute Compression Solid Carbide CNC Router Bits, TCT double straight flutes router bits, Single Flute Spiral Router Bits, Straight Plunge Router Bits, 3 Flutes Chip-Breaker Spiral Bits, Conical ball nose router bits, Down Spiral Router Bit, PCD router bits, etc.
down cut bit.jpg
