Leitz 192127 Whispercut PCD Premilling Cutter 80x45x30 Z=2+2 for Biesse Edge Bander

Leitz 192127 Whispercut PCD Premilling Cutter 80x45x30 Z=2+2 for Biesse Edge Bander

• Biesse PCD Premill Cutters
• 80X45X30 Z=2+2 pre milling cutter
• Replaceable with Leitz part# 192127
• 45mm height Biesse pre-mill cutter
• Biesse pre mill diamond head
• Whispercut PCD premilling cutter for Biesse edgebander
• PCD cutter 80mm Diameter X 45mm X 30mm Bore
• Leitz whisper cut premill diamond head
INQUIRY

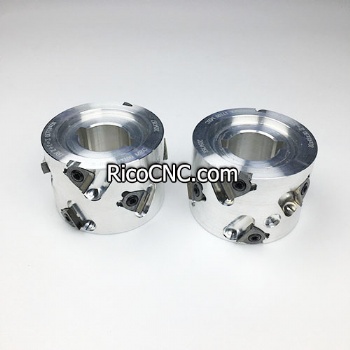

80X45X30 Z=2+2 pre milling cutter.jpg

Leitz 192127 Whispercut PCD Premilling Cutter 80x45x30 Z=2+2 for Biesse Edge Bander

This cutter is whispercut PCD premilling cutter 80mm Diameter x 45mm x 30mm Bore with replaceable blades. It is used on Biesse edgebanding machine, and compatible with Leitz part# 192127.

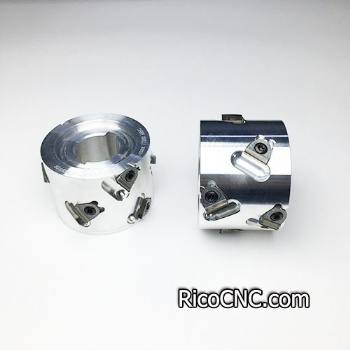

Edgebanding WhisperCut Pre-Mill Cutters.jpg

This WhisperCutter is with aluminum alloy tool body, low noise.
Leitz 192127.jpg

Below is the specification of Biesse 80x30x45mm PCD cutter head

Attribute	Value
Product type	Cutter with bore
Cutting material	DP
Diameter (mm)	80
Cutting width (mm)	45
Thickness of hub (mm)	53
Bore diameter / interface (mm)	30 DKN
Position of hub	1
Number of teeth	2x4
Workpiece material	Plastics Board, coated Board, uncoated Composites
Maximum RPM (min-1)	17100
Type	S
Rotation	LH, RH
Knife type	8xB
Type (Type)	8xB
Make of machine	Biesse

Biesse pre mill diamond head.jpg
Application of edgebander premill cutter:
For tear-free and low noise jointing of workpiece edges side with and against feed (jump-cutting).

Applicable Machine:
Edgebanding machines, copy shaping machines, double-end tenoners etc.

Workpiece material:
Chip and fibreboard (MDF etc.) uncoated, veneered, plastic and paper coated, fibre reinforced plastics (GFRP, CFRP etc.).
Biesse PCD Premill Cutters.jpg

Technical information:
DP tipped cutter head with alternate shear angle for tear-free jointing edges and cutting surfaces. The tool with knife arrangement S can be used left and right and produces a hollow cut for tightly closing edgebanding. Low noise design with up to 5 dB(A) noise reduction and highly efficient chip collection (>95%) by DFC. Significant weight reduction by using an aluminum alloy tool body. Carrier body for multiple uses with exchangeable knives. 0.6 mm resharpening area.
Biesse diamond head.jpg

Other sizes of PCD WhisperCut jointing/milling cutter are also available here.
PCD diamond premill cutter.jpg

RicoCNC can offer a range of spare parts for woodworking edgebanding machines, also profile cutters, track chain pads, rubber pressure rollers, cloth buffing wheels, PCD trimming cutters and PCD pre mill cutters for HOMAG, BRANDT, SCM, OTT, HOLZHER, IMA, Bi-Matic, Cehisa edgebanders etc.
