Sanyo SanAce40 109P0424H3013 40x40x28MM 24V 0.08A Inverter DC Fan

Sanyo SanAce40 109P0424H3013 40x40x28MM 24V 0.08A Inverter DC Fan

• SanAce40. 109P0424H3013 fans
• FAN 40X28MM 24VDC TACH
• Fan Tubeaxial 24VDC Square
• DC Cooling Fan
• Inverter DC Fan
• DC Brushless Fans (BLDC)
• Dual ball fan
• SANYO DENKI fans
INQUIRY

109P0424H3013 fans.jpg

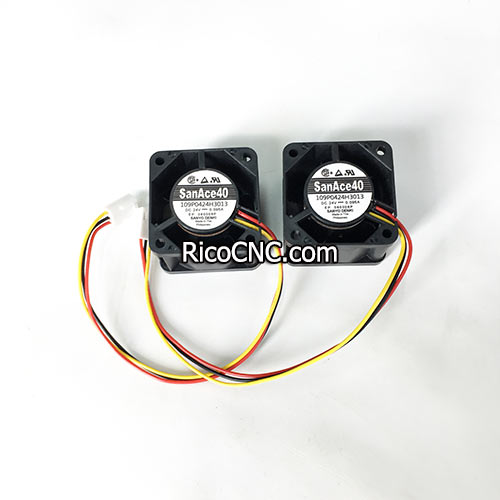

Sanyo SanAce40 109P0424H3013 40x40x28MM 24V 0.08A Inverter DC Fan

This electric fan is SanAce40 109P0424H3013 fan, 40x40x28mm size, 24V DC 0.08A.

SANYO DENKI fans can be used in environments exposed to water. They are suitable for cooling photovoltaic inverters and other equipment installed outdoors.

SanAce40 109P0424H3013 fans.jpg

These fans offer excellent IP68, IP55 or IP54 protection against water and dust, and feature a long 180,000-hour maintenance-free operating life. They show excellent durability even in harsh environments.
SANYO DENKI fans.jpg

SanAce40. 109P0424H3013 fans specification:

Model No.	109P0424H3013	Max. airflow [m3/min]	0.32
Frame size [mm]	40	Max. airflow [CFM]	11.3
Frame thickness [mm]	28	Max. static pressure [Pa]	102.9
Frame material	Plastic	Max. static pressure[inchH2O]	0.414
Rated voltage [V]	24	SPL [dB(A)]	37
Operating voltage range [V]	12～27.6	Operating temperature[˚C]	-20～+70
Rated current [A]	0.095	Expected life[h]	60000/60℃ （90000/40℃）
Rated input [W]	2.28	Mass [g]	52
Rated speed [min-1]	8700	Sensor type	Pulse sensor
Max. airflow [m3/min]	0.32	PWM control function	No
Max. airflow [CFM]	11.3	Ribbed	Yes

Inverter DC Fan.jpg

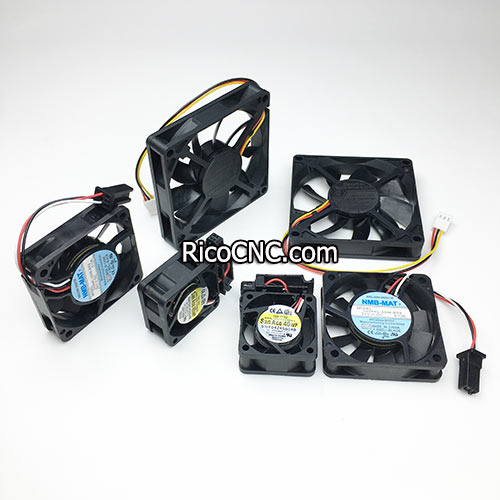

SANYO DENKI fans (fan SANYO DENKI) include the following types,
* DC Cooling Fan
* ACDC Fan
* AC Cooling Fan
SanAce40 Fans.jpg

RicoCNC can supply many of original Sanyo Denki fans, please let us know the models you want, we will give our best price and service.

Welcome to contact us if any inquires for CNC machine parts!

FAN 40X28MM 24VDC TACH.jpg
