KOYO TRD-J500-RZ Compact Generic Incremental Rotary Encoder

KOYO TRD-J500-RZ Compact Generic Incremental Rotary Encoder

• KOYO rotary encoder
• TRD-J Series
• Compact multi-purpose type
• Incremental Rotary Encoder
• Koyo encoder
• TRD-J500-RZ
• Compact generic incremental rotary encoder
• Quadrature (2-Phase Output) Encoder
INQUIRY

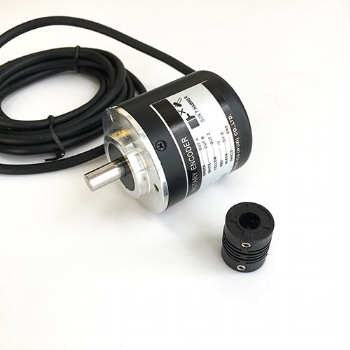

KOYO TRD-J encoder.jpg

KOYO TRD-J500-RZ Compact Generic Incremental Rotary Encoder

This is Koyo TRD-J500-RZ encoder, it is used in all types of motion sensing applications, including machine tooling, semiconductor positioning and multi-axis positioning. All Koyo encoders feature a reinforced aluminum diecast casing and come equipped with a two-meter cable or MS connector.

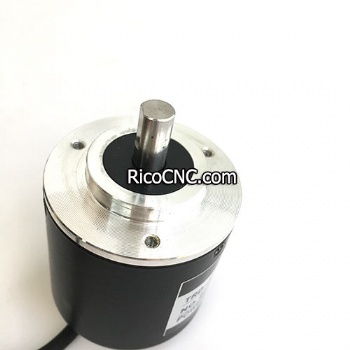

koyo Compact multi-purpose encoder.jpg

KOYO TRD-J500-RZ encoder specification:

Encoder Type	Incremental
Duty Type	Medium
Pulse Per Revolution	500
Input Voltage (VDC)	5-30
Output Form	Push-Pull (Totem Pole)
Signal Format	Quadrature (2-Phase Output) + Home Position
Output From	Back
Shaft	Solid
Shaft Diameter (mm)	8
Diameter (mm)	50
Depth (mm)	50
Mounting Pitch (mm)	40
Cable Length (meter)	0.5
Connector Type	Tinned Ends
Protection Level	IP50 (Dust Proof)
Mounting Screws	Included
Short Circuit Protection	No
Reverse Origin Action	Positive Logic (Active High)
Total Shaft Length (mm)	15
Usable Shaft Length (mm)	10

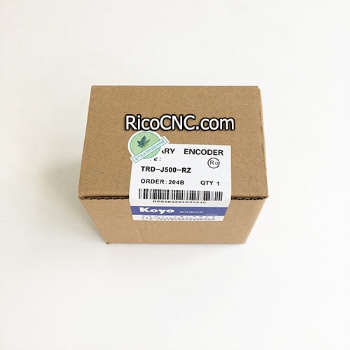

Koyo Incremental Rotary Encoder.jpg
Performance characteristics:
• Low-cost, high-performance design
• External diameter of φ50mm
• Shaft φ8mm
• Wide range of resolution
• Resistance to shock and vibration of the metal gratings
• Wide voltage range
• Enhanced extended cable
• Push-pull output
• Long-lasting design of φ8 mm shaft in φ50 mm body
• Durable metal slit plate to achieve 1000 P/R
• Wide voltage ranging from 4.75 to 30 V DC
• Totem-pole output allows longer cable extension

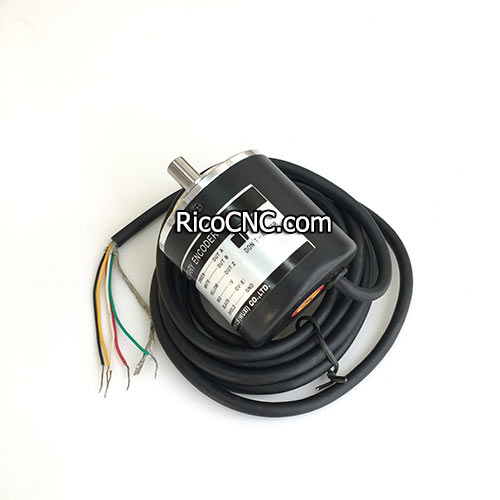

Koyo encoder.jpg
