Azbil Yamatake SL1-A Roller Plunger Compact Horizontal Micro Switch SL1A

Azbil Yamatake SL1-A Roller Plunger Compact Horizontal Micro Switch SL1A

• SL1-A Roller Switch
• SL1-A - Switch
• YAMATAKE limit switch SL1-A
• Yamatake Azbil Honeywell Microswitch
• Micro Switch
• Compact Horizontal Limit Switches
• Mori E66021A
• SL1-A Azbil Yamatake Roller Plunger Limit Switch
INQUIRY

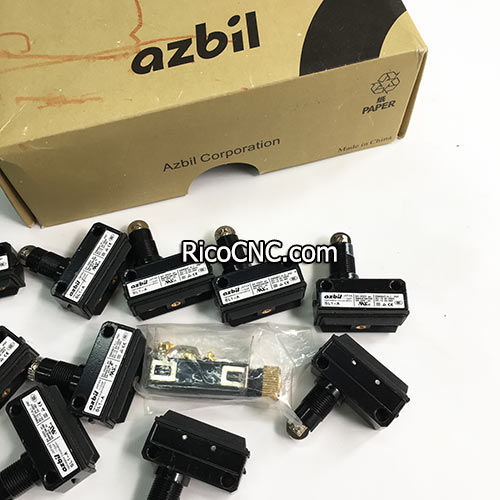

Azbil SL1-A.jpg

Azbil Yamatake SL1-A Roller Plunger Compact Horizontal Micro Switch SL1A

This SL1-A micro switch is commonly used roller switch for CNC. SL1A switches are made by several companies. The SL1-A switch may be brand named by Yamatake, Honeywell, Azbil and others. They are often used in gearboxes and tool changers. Other common applications for SL1-A Switch is for a zero return or over travel switch.

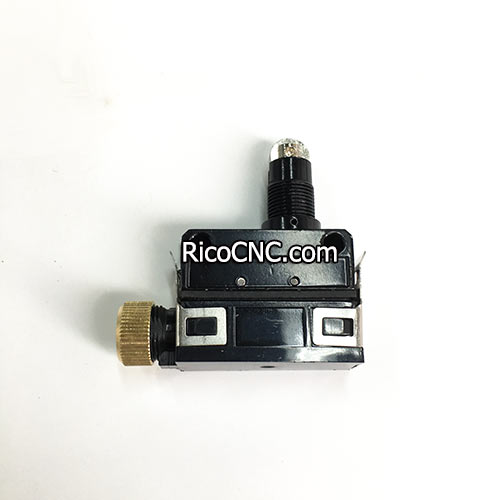

YAMATAKE limit switch SL1-A.jpg

This compact horizontal limit switch is a robust long-life and maintenance-free switch with IP67 seal, made by Yamatake/Azbil.

This switch is the roller plunger type and has a mechanical life which exceeds 20 million operations owing to a 2-piece spring mechanism.
SL1-A Roller Switch.jpg
Replacement SL1-A Switch for the following:
Yamatake SL1-A Switch
Yamatake SL1-A-E Switch
Azbil SL1-A Switch
Honeywell SL1A Microswitch
Mori E66021A
Mori E66021A.jpg

SL1A Microswitch Specifications:
1 NC and 1 NO contact
Ampere Rating 5.0Amp
Maximum Supply Voltage 250 Vac
NEMA 3, 4, 13 and IEC IP 67 sealing
SL1A Mechanical life exceeds 20 million operations owing to a 2-piece spring mechanism.
High sensitivity (M.D. = 0.1mm). Superior seal: oil-resistant/immersion-proof

Product Attribute	Attribute Value
Actuator Type	Roller
Body Style	Miniature
Contact Form	SPDT
Current Rating	5 A
Head Type	Side Plunger Head
IP Rating	IP67
Material	Zinc Die-Cast (Housing)
Mounting Hole Size	4.2 mm
Mounting Type	2 M14 hexnuts on M14 threaded bushing (10mm depth).
Number of Poles	1
Number of Positions	2
Operating Force	2.64 lb. (Max.)
Operating Temperature	-10 to 70 °C
Series	SL1 Series
Type	Limit
Type Port	Cable Gland
Voltage Rating	250 VAC

Honeywell SL1A Microswitch.jpg
