SYM SV410 5-2 Way Pneumatic Electric Solenoid Valve SV 410

SYM SV410 5-2 Way Pneumatic Electric Solenoid Valve SV 410

• Korea SYM electromagnetic valve
• SV410 valve
• 2 way pneumatic electric solenoid valve
• 5-port pilot type / elastic seal
• 5-port / 2-position
• SV400 series valves
• SYM solenoid valve
• Non-locking push type solenoid valve
INQUIRY

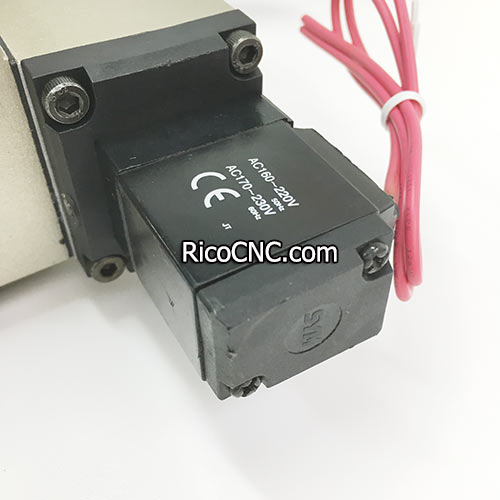

Korea SYM electromagnetic valve .jpg

SYM SV410 5/2 Way Pneumatic Electric Solenoid Valve SV 410

This SV410 valve is 5-port / 2-position pneumatic electric solenoid valve made by Korea SYM, size is 10 cm x 6 cm x 8 cm. Application: petroleum, metallurgy, chemical industry, paper industry, urban heating supply systems and so on.

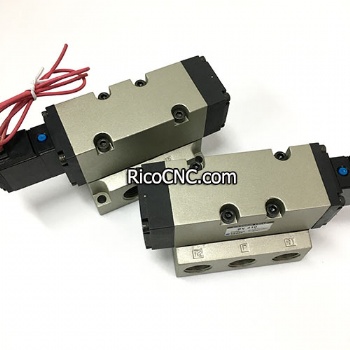

electromagnetic valve SV410.jpg

SYM SV400 series electric solenoid valve specification:

MODEL			SV410	SV420	SV430	SV440	SV450
Fluid			Air or Inert Gases
Pressure range (kgf/cm²)			0.15-0.9(1.5-9.2)	0.1 ~0.9 (1-9.2)	0.2 ~0.9 (2-9.2)
Effective area (mm2 (Cv))			80 (4.44)		70 (3.89)
Ambient and media temp.			Max. 50°C
Response time (Skgf/cm²)			40 ms or less		60 ms or less
Max. Cycles/Second			5C/S		3C/S
Lubrication			Not required
Manual override operation			Non-locking push type
Shock/Vibration resistance			30G/5G (8.3-2,000 Hz)
Protective structure			Dust-proof
Coil rated voltage			AC 50/60 Hz 110V, 220V DC 12V, 24V
Allowable voltage tolerance			-15%~+10% of rated voltage
Coil insulation			Class B or equivalent (130°C)
Apparent	AC	Starting	5.6 VA (50 Hz), 5.0 VA (60 Hz)
Power		Holding	4.5 VA (50 Hz), 3.8 VA (60 Hz)
Power consumption	DC		1.8W
Weight (kg)			0.83	0.87	0.88	0.88	0.88
Surge suppressor			AC, DC: Varistor
Indicator lamp			LED

SV400 series valve.jpg

SV410 valve characteristics:
• Compact size and large flow capacity
• Effective area 80 mm2 (Cv4.44)
• Low power consumption / 1.8W (DC)
• Various electrical entries
