1.5KW GDZ93X82-1.5 ER20 18000rpm CNC Router Air-Cooled Spindle Motor

1.5KW GDZ93X82-1.5 ER20 18000rpm CNC Router Air-Cooled Spindle Motor

• GDZ93x82-1.5 ER20 18000rpm 1.5KW spindle
• Model: GDZ93X82-1.5
• Brand Changsheng spindle motor
• 1.5KW air-cooled spindle
• GDZ93x82-1.5 spindle
• Air cool spindle motor
• GDZ93x82-1.5 for CNC router
• Square spindle motor
INQUIRY

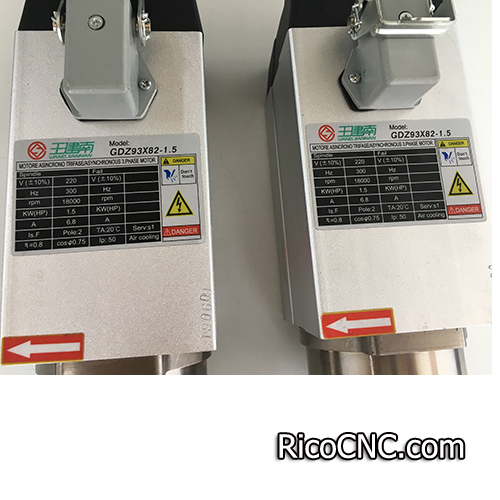

1.5kw air cooled spindle.jpg

1.5KW GDZ93X82-1.5 ER20 18000rpm CNC Router Air-Cooled Spindle Motor

This is China brand Changsheng GDZ93X82-1.5 1.5KW ER20 air-cooled square high-speed CNC spindle motor for Woodworking CNC Machine.

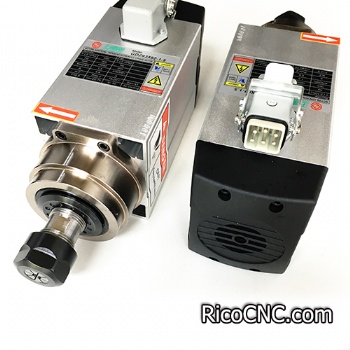

Changsheng spindle motor.jpg

A spindle is the crucial component of any CNC router, which operators use to perform high-speed milling, drilling, engraving, and other operations.
Air cool spindle motor.jpg

Specification of 1.5KW GDZ93X82-1.5 air-cooled spindle motor:

Model No.	GDZ93x82-1.5
Brand	changsheng
Certification	ISO9001-2000
Product type	three-phase asynchronous motor for woodworking
Pole number	2
Rated power(KW)	1.5kw
Rated voltage(V)	220
Rated speed(rpm)	18000
Current(A)	10A
Frequency(Hz)	300
Cooling	By air
Bearing type	2×7005C P4 & 2×7002C P4
Length/width/hight(mm)	248/82/82
Lubricate	grease
Collet(mm)	ER20,
Collet(mm)	3.175-6MM, 6mm default
balance test result(ms*s)	2.4rpm<5

18000rpm 1.5KW spindle.jpg

RicoCNC offers a range of CNC spare parts, CNC spindle motors with air-cooled spindle and water cooling spindle motors, CNC tool holder and plastic tool forks, CNC router bits, CNC vacuum pods, etc.
