2.2kw Water Cooled Liquid Cooling Spindle GDZ-80-2.2B for Sale

2.2kw Water Cooled Liquid Cooling Spindle GDZ-80-2.2B for Sale

Water (liquid) spindle is cheap, quiet and great performance for a long time continuously working. It is a favorite cnc spindle motor widely used on cnc routers. Especially for 3D and relief carving.

2.2kw Water Cooled Features:

Model: GDZ-80-2.2B
Diameter: 80mm
Power: 2.2kw
Max. rotating speed: 24000rpm
Max. frequency: 400Hz
Current: 8A
Input voltage: 220V, 1 phase
Poles: 2
Connection type: Collet ER20
Length: 213mm

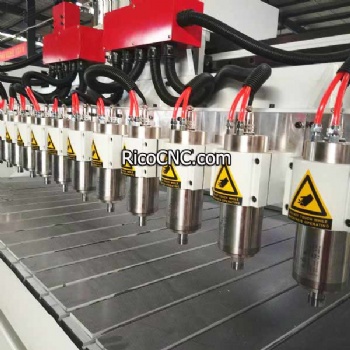

Quick CNC router also adopts this spindle motor

The water cooling spindle adopts water cycle to cooling the spindle, so the cooling effect is very good. The continuous working time is long, and high rotating speed, usually 24K rpm, Low noise and long lifespan. And it is much cheaper than air cooled spindle. All these advantages get the water cooled spindle more popular.

Liquid cooled motor spindle features a vast range of powers and working speeds. Rico CNC supplies a lot of cnc router spindles, such as: GDZ65-800A, GDZ62-1.2, GDZ80-1.5B, GDZ80-2.2B, GDZ-80-2.2B (4), GDZ100-3, GDZ105-3.2, GDZ100-3.7, GDZ100-4.5, GDZ125-4.5, GDZ125-5.5, etc.
These are high speed water cooled cnc spindle motor for woodwork, stone engraving, mold milling, etc.

We can also supply the new spindle motors:

GDZ-26 Φ62/800w
GDZ-15 Φ65/800w
GDZ-17B Φ80/1.5kw
GDZ-23-1 Φ85/2.2KW
GDZ-24-1 Φ100-3kw
GDZ-24-3
GDZ-27 Φ100-4.5KW
If any needs of CNC spindle motors, welcome to contact us. Water pump for water cooled spindle cycling is also available here, RicoCNC is a one-stop market for CNC parts.
