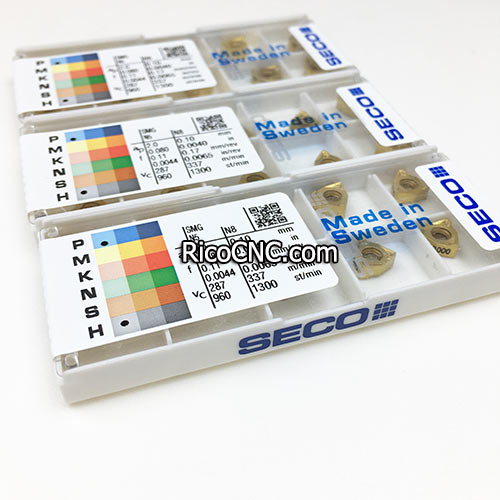

XNEX040304TRM08 MP3000.jpg

XNEX040304TRM08 MP3000 Square 6-6 Cutting-edge Double Side Shoulder Mills Insert Size 04


This Carbide Milling insert is made by SECO, it is square 6 cutting edge double sides milling inserts, insert size is 04, insert grade is MP3000, part number is XNEX040304TRM08 MP3000, Suitable for cutter code B1 2240.

Milling insert XNEX040304.jpg


XNEX040304TRM08 MP3000 specification:

Desc.

Value

clearance angle major

0.000 deg

Wiper edge length BS

0.031 in

cutting edge count

6

insert size and shape

XNEX0403

insert included angle

88.000 deg

insert rake angle

27.000 deg

Grade

MP3000

Gradetype

Carbide PVD

inscribed circle diameter IC

0.264 in

Insert hand IH

Right

Item Number

2765956

cutting edge effective length LE

0.157 in

corner radius RE

0.016 in

Insert thickness S

0.130 in

Insert seat size code

XNEX04..

Net weight

0.003 lb

SQUARE 6 - 6-CUTTING-EDGE DOUBLE-SIDED INSERTS.jpg

XNEX040304TRM08 MP3000 features:

•Cutter range 20-63 mm (0.750-2.000 inch)

•Max depth of cut 4 mm (0.157 inch)

•Recommended slotting depth of cut 2 mm (0.079  inch)

•Insert corner radii range 0.4-0.8 mm (0.016-0.031 inch)

•PVD TiAlN coated insert

•Designed for used in steel, stainless steel, cast iron, and hi-temp alloys.

SQUARE SHOULDER MILLS.jpg

RicoCNC also can supply wide range of cnc spare parts, CNC cutter bits, and CNC machines.
