Single/Double Layer Laser Nozzle for Fiber Laser Cutting Machine


The laser nozzle is one of the most important parts of a fiber laser cutting machine. It is installed at the bottom of the laser head, laser power and high-pressure airflow are emitted through the nozzle, which is related to the cutting quality and service life of the laser cutting equipment.

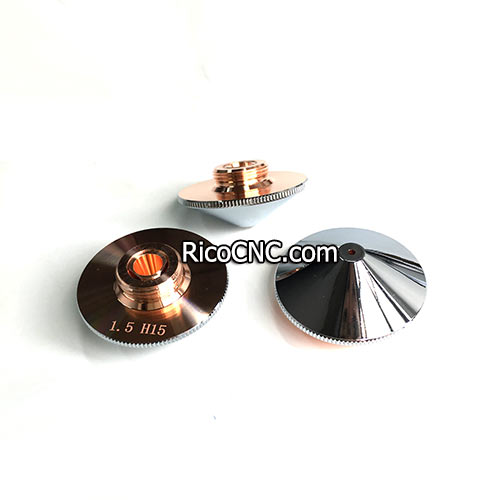

Double Layer Laser Nozzle.jpg

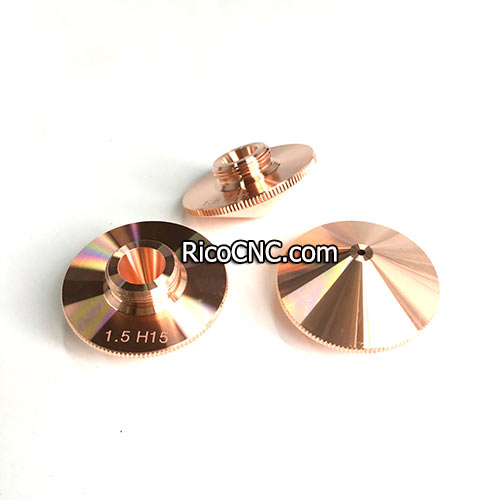

Single Layer Laser Nozzle.jpg

General laser cutting nozzles are divided into single and double layers.

Single-layer nozzles are used for melting and cutting, that is, nitrogen is used as auxiliary gas, and it is usually used to cut stainless steel, aluminum alloy, brass, etc.

Double-layer nozzles are generally used for oxidative cutting, that is, using oxygen as an auxiliary gas, usually used for cutting carbon steel.

fiber laser cutter nozzle .jpg

The nozzles have different diameters, such as φ1.0mm, φ1.5mm, φ2.0mm, φ2.5mm, φ3.0mm. At present, the nozzle aperture usually uses two sizes: φ1.5mm and φ2mm.


Laser nozzles Details

Material: Fused Silica

Lens Diameter:20~50mm

Edge Thickness:1~5mm

Applicable Laser Type: Fiber, YAG, semi-conductor, CO2

Coated both sides AR/AR@1064nm

Application: YAG/Fiber laser cutting/welding machines

laser cutting nozzle size.jpg

There are many sizes for your reference, please let me know which sizes you are looking for.

Model(mm)

Model(MM)

20*1

34*3

20*2

34*5

20*3

35*4

22.35*4

36*5

25*2

37*7

25*3

38*2

25.4*4

38*6

28*4

40*2

30*1

40*3

30*1.5

42*3

30*3

42*9

30*5

48*3

32*3

50*1.5

32*4

50*2

laser cutting nozzle selection.jpg

RicoCNC can supply wide range of cnc spare parts, CNC cutter bits, and CNC machines.

laser nozzle types.jpg

Welcome to contact us if any inquires!

fiber laser nozzles.jpg
