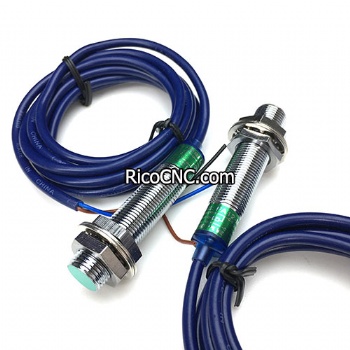

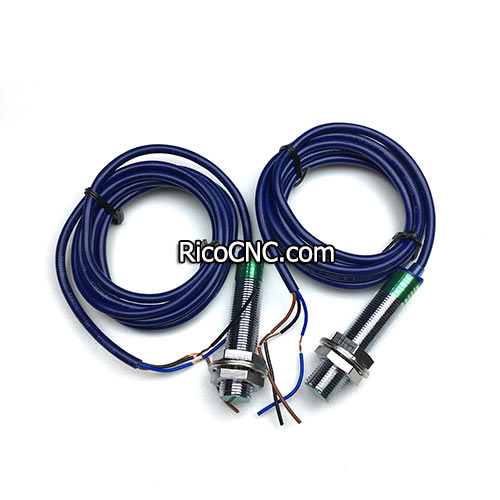

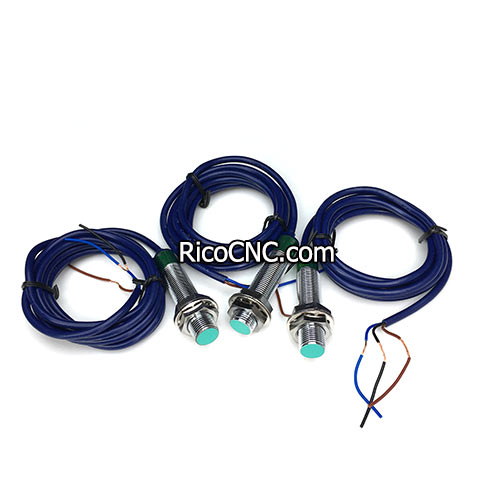

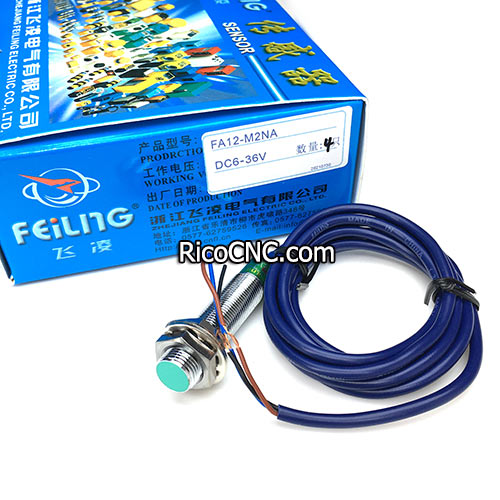

FA12-M2NA FEILING Sensor Inductive 3 Wires NPN NO/NC DC6-36V
This is a Normally Open proximity switch Inductive Proximity Sensor Switch, Model number is FA12-M2NA. With 3 wires M12 dc6-36V.
FA12-M2NA:NPN Normal Open
Working voltage: DC6-36V
Diameter:12mm
Detection distance:2mm±10%
DC/AC output voltage drop: AC <8V, DC three lines <1.5V, DC two lines <4V
output current: 2A SCR 300mA 1A Silicon Controlled Relay, Three Wire DC 50ma Second Line 200mA
Repeat accuracy: Less than or equal to 10%
consumption current: <10mA
response frequency: 800Hz AC, 25Hz DC400Hz AC, 25Hz DC
shell material: Metal/ABS plastic
Distance: 0-1.6mm0-3.2mm
The standard object test: 14x14x1 (Iron)
Environment working temperature: -20C~+55C
connection mode: PVC 1.5m cord
Protection level: IP67
This FA12-M2NA sensor is normal used in Vibration measurements of rotating shafts in machinery, Top dead centre (TDC)/camshaft sensor in reciprocating engines, PLC I/O Module, etc.
FEILING FA12 Series Inductance type proximity switch Specifications:
Installation Mode | Buried type | Non submerged | ||
Detection Distance | 2mm | 4mm | ||
AC90-250V | Two-wire system | NO | FA12-M2KA | FA12-4KA |
NC | FA12-M2KB | FA12-4KB | ||
Three-wire system | NO+NC | |||
Ralay output four lines | NO+NC | |||
Ralay output five lines | NO+NC | |||
DC6-36V | NPN | NO | FA12-M2NA | FA12-4NA |
NC | FA12-M2NB | FA12-4NB | ||
NO+NC | FA12-M2NC | FA12-4NC | ||
PNP | NO | FA12-M2PA | FA12-4PA | |
NC | FA12-M2PB | FA12-4PB | ||
NO+NC | FA12-M2PC | FA12-4PC | ||
Two-wire system | NO | FA12-M2LA | FA12-4LA | |
NC | FA12-M2LB | FA12-4LB | ||
RicoCNC also can supply other inductive sensor switch as Omron, SMC, Autonics, ROKO, etc.
Please contact us for more information.
