2026950280 2-026-95-0280 Bevel Gear Set Spiral Toothed Number of Teeth 13/18 I=1.385:1 for Homag Beam Saw

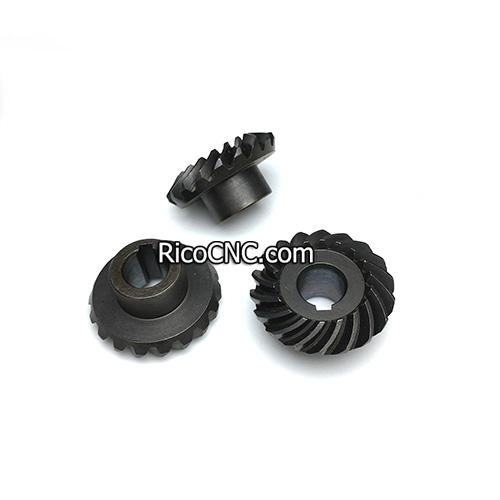

This is a bevel gear, Homag part number is 2026950280 or 2-026-95-0280, size is 48×48×49cm, sold in pairs, 13/18 teeth,1.5 spiral toothed and transmission is 1.385:1. This transmission gear is usually used in Homag Beam Saw.

2-026-95-0280 size.jpg

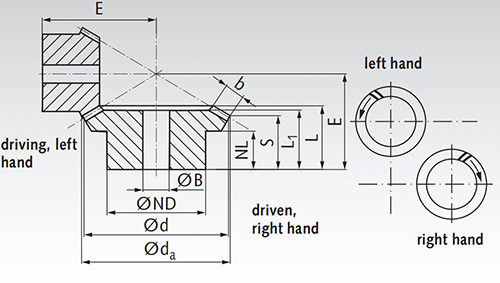

2-026-95-0280 bevel gear description:

Transmission [i]

1,385 : 1

No. of Teeth

13 / 18

da [mm]

36,7/48,5

d [mm]

33,9/47

ND [mm]

22/30

NL [mm]

11/11

L1 [mm]

21,6/20,9

L [mm]

24/24,9

S [mm]

15,9/19

b [mm]

10/10

B H7 [mm]

12/15

E [mm]

38,5/34,8

Admissible MD [Nm]

11,3/15,7

Weight/Pair [g]

216

2026950280 gear.jpg

Bevel gear wheel set 1.385 1.jpg

There are other transmission parts for Homag, such as:

3201260880 Gear 3-201-26-0880 Pinion Carro M2 for Homag Beam Saw HPP230 HPP180

3202260710 Homag Rack 3-202-26-0710 Rack M2 L999 for HPP180 Beam Saw

etc.

Spiral toothed wheel.jpg

Homag transmission gear.jpg

RicoCNC can supply various of Homag/Brandt spare parts, please check our website, if you can not find, please contact us for more information!

Homag worm wheels.jpgHomag bevel gear.jpg
