Brand New Homag 4035010716 4-035-01-0716 Aventics 0822124005 Profile Cylinder

• Homag cylinder ISO 15552 PRA D=80 HUB=125 G3/8
• 4035010716 Homag cylinder
• Homag 4-035-01-0716 profile cylinder
• AVENTICS 0822124005 cylinder
• AVENTICS 0822124005 profile cylinder ISO 15552, PRA series
• PRA-DA-080-0125-0-2-2-1-1-1-BAS
• BOSCH 0822124005 pneumatic cylinder
• Aventics 0822124005 pneumatic cylinder PRA-DA-080-0125-0-2-2-1-1-1-BAS
INQUIRY

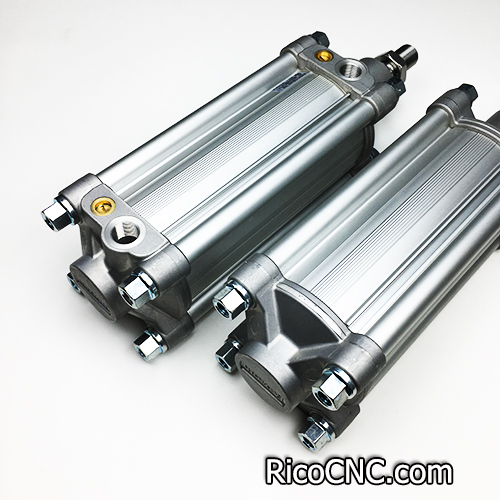

AVENTICS 0822124005 cylinder.jpg

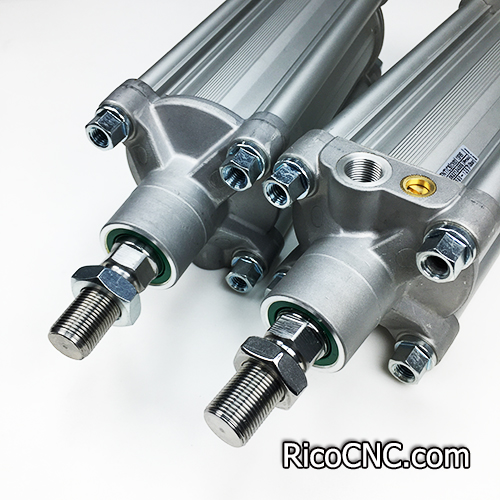

BOSCH 0822124005.jpg

Brand New Homag 4035010716 4-035-01-0716 Aventics 0822124005 Profile Cylinder

This is AVENTICS 0822124005 profile cylinder. This pneumatic cylinder is ISO 15552, PRA series (PRA-DA-080-0125-0-2-2-1-1-1-BAS). It can be used on Homag woodworking machine. Homag part number is 4035010716 or 4-035-01-0716

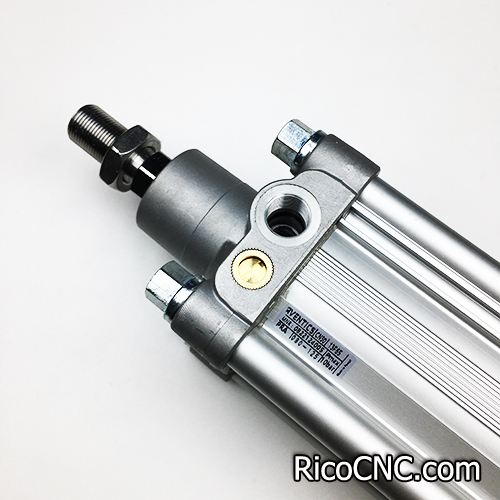

Homag 4-035-01-0716 profile cylinder.jpg

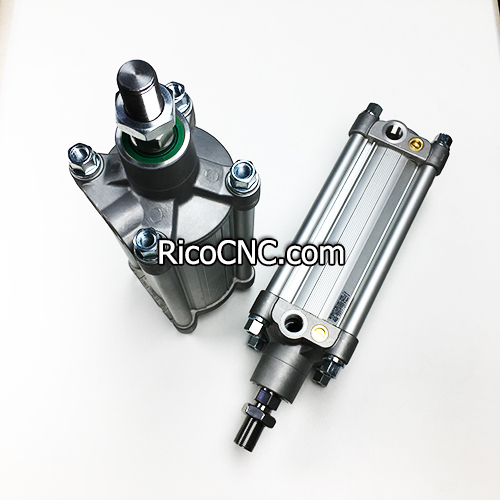

0822124005 cylinder.jpg

Specification of BOSCH 0822124005 cylinder:

Series	Profile cylinder - series PRA
Piston diameter	Piston diameter 80
Stroke	Stroke in mm
Threads	ISO Threads
Tube	Advanced Profile: sensors on 4 sides
Cushioning	Pneumatic cushioning
Piston	Piston with magnet
Piston rod	Single
Sealings	Standard
Scraper	Scraper - standard
Corrosion protection	Standard
Piston rod extension	Without piston rod extension
ATEX	Without ATEX
Trunnion mounting	Without trunnion mounting
Position trunnion mounting
End covers	End covers without surface treatment
Port position
Port position front	0° (12h)
Port position rear	0° (12h)
Accessories
Piston rod mountings	No mounting
Mounting at front cover	No mounting at front cover
Mounting orientation front	Without mounting
Mounting at rear cover	No mounting at rear cover
Mounting orientation rear	Without mounting
Counter bearing	No counter bearing
Guide units	No guiding unit, no locking element
Sensor type	Without Sensor
Sensor position	Without sensor position
Fittings front	Front cover - without fitting
Fittings rear	Rear cover - without fitting

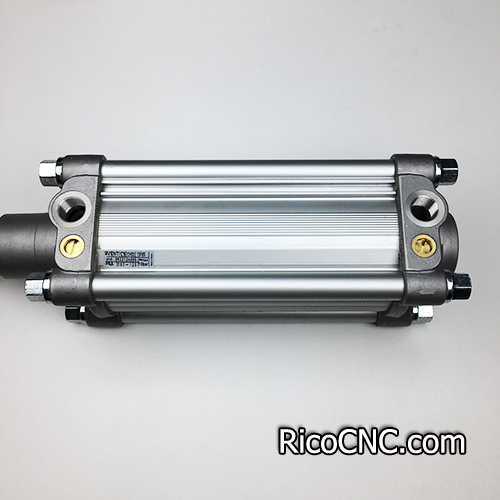

Homag 4-035-01-0716 cylinder.jpg

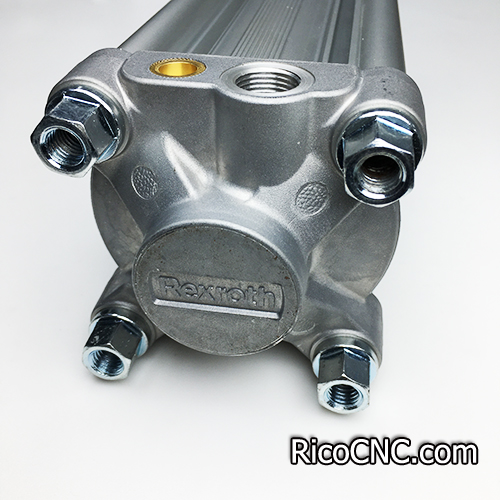

4035010716 Homag cylinder.jpg

RicoCNC is one-stop market for woodworking machine spare parts and tools. If you are looking for machine accessories, please contact us. We will try our best to support you.
