4008320259 4-008-32-0259 Pizzato Limit Switch NF B110BB-SMK for Homag HPL300 Beam Saw

4008320259 4-008-32-0259 Pizzato Limit Switch NF B110BB-SMK for Homag HPL300 Beam Saw

• 4008320259 switch
• 4-008-32-0259 limit switch
• LIMIT SWITCH B110BB-SMK
• Pizzato Limit Switch NF B110BB-SMK
• HOMAG HPL300 limit switch
• HOMAG spare parts
• Modular prewired switch with roller plunger
• Pizzato NF series switch
INQUIRY

4008320259 4-008-32-0259 Pizzato Limit Switch NF B110BB-SMK for Homag HPL300 Beam Saw

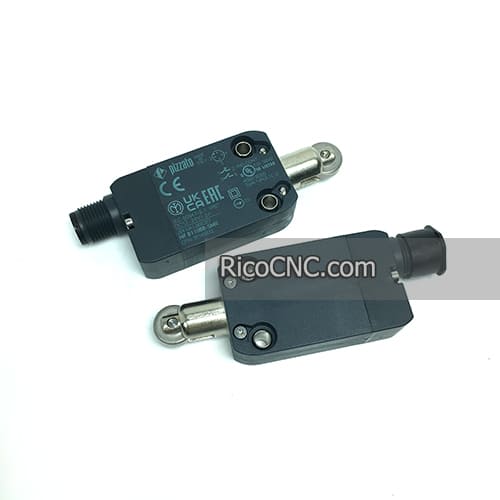

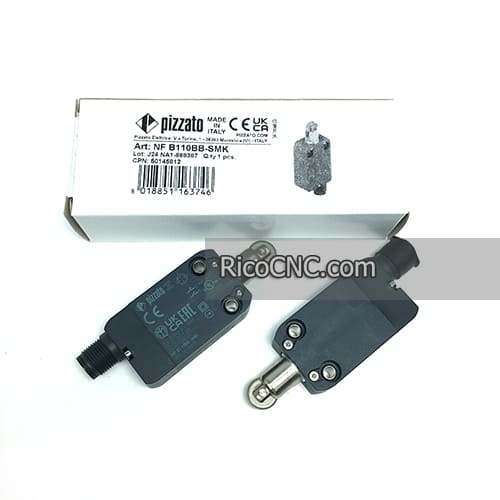

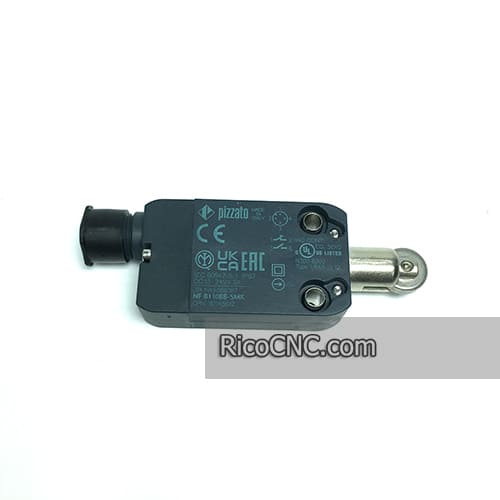

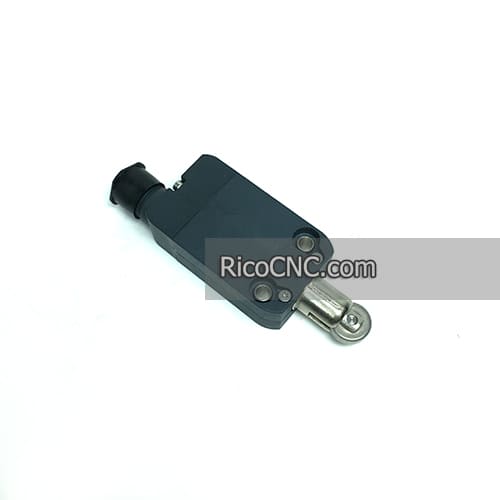

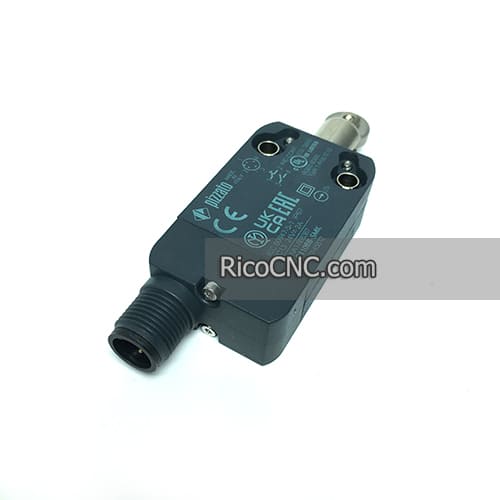

This is a modular prewired switch with roller plunger, made by Pizzato, it is Pizzato NF series, the model number is NF B110BB-SMK. It is used for HOMAG HPL300 Beam saw, the HOMAG part number is 4008320259 4-008-32-0259.

NF B110BB-SMK.jpg

Specification of 4-008-32-0259 Pizzato Limit Switch NF B110BB-SMK:

Protection degree	IP67 according to EN 60529 and IP69K according to ISO 20653
Housing	Technopolymer housing, 20 mm fixing points
Contact block	1NO+1NC snap action (B11)
Head	Roller plunger
Kind of connection	Technopolymer connector M12 from bottom 4 poles
Positive opening	Yes

4-008-32-0259 switch.jpg

Rico also can supply other limit switches:

4008320849 Bernstein I88-UV1Z AH 618.6335.628 Medium Duty Limit Switches

Balluff BNS026R BNS 819-B02-D12-61-12-10 Mechanical Multiple Position Limit Switches

4008320970 4-008-32-0970 Safety Switch AZM 161CC-12/12RK-024 HOMAG

4-008-32-0895 4008320895 Limit Switch XCMD2102C12 for Holzma HPP / HPL / HKL

4-008-32-0801 4008320801 Schneider Electric XCMD2126C12 Limit Switch for Homag Beam Saw

4008320308 4-008-32-0308 Safety Edge Switch GC-U1Z VKW

HIGHLY D 5020 Microswitch SNAP ACTION Roller Plunger Limit Switch

LIMIT SWITCH B110BB-SMK.jpg

RicoCNC can supply various of Homag/Brandt spare parts, we also can supply other spare pars for Anderson, Biesse, Busellato, DMS, CR Onsrud, Komo Machinery, IMA, Brandt, Intermac, Laguna Tools, Morbidelli, Northwood, Weeke, SCM, Multicam, Techno, Masterwood, Felder, Holz-her, Greda Sirio, Thermwood, CNT Motion, Flexicam, etc.

Pizzato Limit Switch NF B110BB-SMK.jpg
