Homag 4086050463 Beckhoff KL2408 8-channel Digital Output Bus Terminal Module

Homag 4086050463 Beckhoff KL2408 8-channel Digital Output Bus Terminal Module

• KL2408
• Homag 4086050463 (4-086-05-0463)
• Beckhoff KL2408
• KL2408 PLCs
• KL2408 Bus end plate
• KL2408 BECKHOFF automation
• KL2408 Digital Output Module
• Digital Output Bus Terminal
INQUIRY

Homag 4086050463 Beckhoff KL2408 8-channel Digital Output Bus Terminal Module

The KL2408 digital output terminal connects the binary control signals from the automation unit on to the actuators at the process level with electrical isolation. It is protected against reverse polarity connection and handles load currents with outputs that are protected against overload and short-circuit. The Bus Terminal contains eight channels which indicate their signal state by means of light emitting diodes. Homag part No.: 4086050463 (4-086-05-0463) Homag 4086050463.jpg

It is particularly suitable for space-saving use in control cabinets. The connection technology is optimized for single-ended inputs. All components have to use the same reference point as the KL2408. The power contacts are looped through. The outputs are supplied by the 24 V power contact.

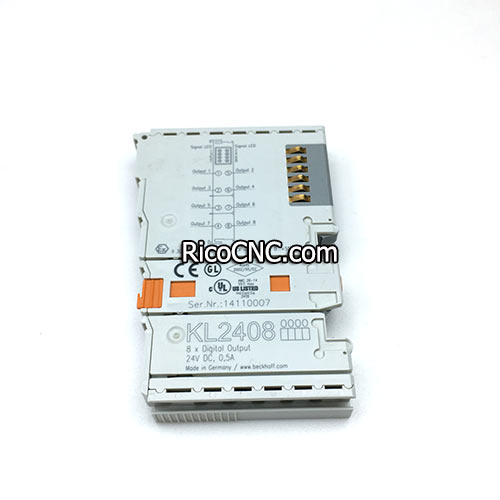

Beckhoff KL2408.jpg

This 8-channel digital output terminal 24 V DC, 0.5 A, single-conductor connection is used in all ITF gas calibration test facillities. But it can be used for other systems as well.

KL2408 Bus Terminal Technical Data:

Technical data	KL2408
Connection technology	1-wire
Number of outputs	8
Nominal voltage	24 V DC (-15 %/+20 %)
Load type	ohmic, inductive, lamp load
Max. output current	0.5 A (short-circuit proof) per channel
Short-circuit current	< 2 A
Breaking energy	< 150 mJ/channel
Reverse voltage protection	yes
Electrical isolation	500 V (K-bus/field potential)
Current consumption power contacts	typ. 60 mA + load
Current consumption K-bus	typ. 18 mA
Bit width in the process image	8 outputs
Configuration	no address or configuration setting
Weight	approx. 70 g
Operating/storage temperature	-25…+60 °C/-40…+85 °C
Relative humidity	95 %, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/variable
Pluggable wiring	for all KSxxxx Bus Terminals
Approvals/markings	CE, UL, ATEX, DNV GL, IECEx, cFMus
Ex marking	ATEX:
	II 3 G Ex nA IIC T4 Gc
	IECEx:
	Ex nA IIC T4 Gc
	Ex tc IIIC T135 °C Dc
	cFMus:
	Class I, Division 2, Groups A, B, C, D
	Class I, Zone 2, AEx ec IIC T4 Gc

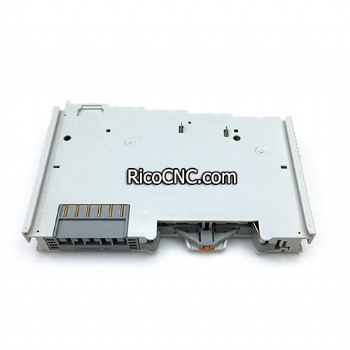

Beckhoff module.jpg

There are also many other EtherCAT terminals products made from Beckhoff, please send the model number and images, we will check and reply you quickly.
