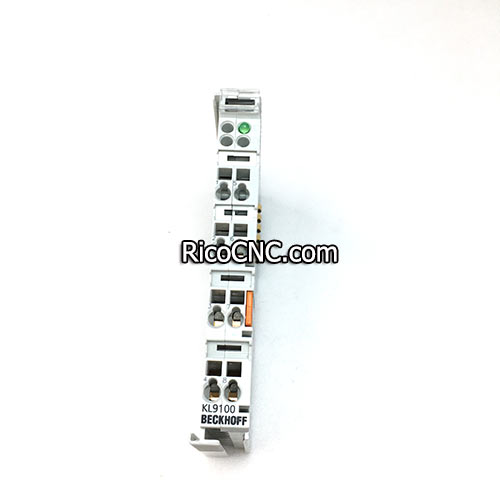

KL9100 BECKHOFF.jpg

Homag 4-086-05-0351 (4086050351) BECKHOFF KL9100 Power Supply Module 24 DV Bus Terminal

The KL9100 power feed terminal makes it possible to set up various potential groups with the standard voltage of 24 V DC. It is widely used with Homag machines. Homag part number 4-086-05-0351 (4086050351)
KL9100 Bus Terminal.jpg

KL9100 potential supply terminal technical data:

Technical data

KL9100

Nominal voltage

24 V DC

Current load

≤ 10 A

Power LED

green

PE contact

yes

Renewed infeed

yes

Connection facility to additional power contact

1

K-bus, looped through

yes

Bit width in the process image

0

Electrical isolation

yes

Housing width

12 mm

Weight

approx. 50 g

Side by side mounting on Bus Terminals with power contact

yes

Side by side mounting on Bus Terminals without power contact

yes

Operating/storage temperature

-25…+60 °C/-40…+85 °C

Pluggable wiring

for all KSxxxx Bus Terminals

Approvals/markings

CE, UL, ATEX, DNV GL

Ex marking

II 3 G Ex nA IIC T4 Gc

Homag 4-086-05-0351.jpg

There are also many other EtherCAT terminals products made from Beckhoff, please send the model number and images, we will check and reply you quickly.
