Homag 2003953750 AIRTAC Air Pneumatic Cylinder For PTP160 Machining Center

Homag 2003953750 AIRTAC Air Pneumatic Cylinder For PTP160 Machining Center

• AIRTAC air pneumatic cylinder MDJ32X70S
• Homag 2003953750 gear cylinder
• AIRTAC multi-mount pneumatic cylinder (adjustable stroke type)
• Bore size: 32mm Stroke: 70mm
• Gear cylinder for Homag PTP160 machining center
• Homag 2-003-95-3750 air cylinder
• AIRTAC multi-mount cylinders MDJ32X70S SJ1796C
• Homag 2003953750 cylinder for PTP160 machining center
INQUIRY

Homag air cylinder.jpg

Homag pneumatic cylinder.jpg

Homag 2003953750 AIRTAC Air Pneumatic Cylinder For PTP160 Machining Center

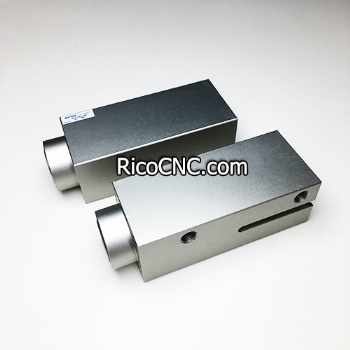

This cylinder is AIRTAC multi-mount cylinder MDJ32X70S SJ1796C. It can be used on Homag PTP160 machining center. The homag replacement part number is 2003953750 or 2-003-95-3750.
AIRTAC multi-mount pneumatic cylinder.jpg

cylinder for Homag PTP160 machining center.jpg

Below is the specification for Homag 2003953750 air pneumatic cylinder
Fluid: Air(to be filtered by 40u m filter element）
Double acting: 0.1 to 1.0 Mpa(14 to 145psi)
Single acting: 0.2 to 1.0 Mpa(28 to 145psi)
Proof pressure: 1.5MPa(215psi)
Temperature(degrees Celsius): -20 to 80
Speed range(mm per second):
Double acting: 30 to 500
Single acting: 50 to 500
Cushion Type: Bumper
Magnet: with a magnet
Bore size: 32mm
Stroke: 70mm

AIRTAC multi-mount cylinders MDJ32X70Sjpg.jpg
