4-035-01-0641 Homag 4035010641 Aventics 0822332504 Pneumatic Cylinder for Edgebander Machine

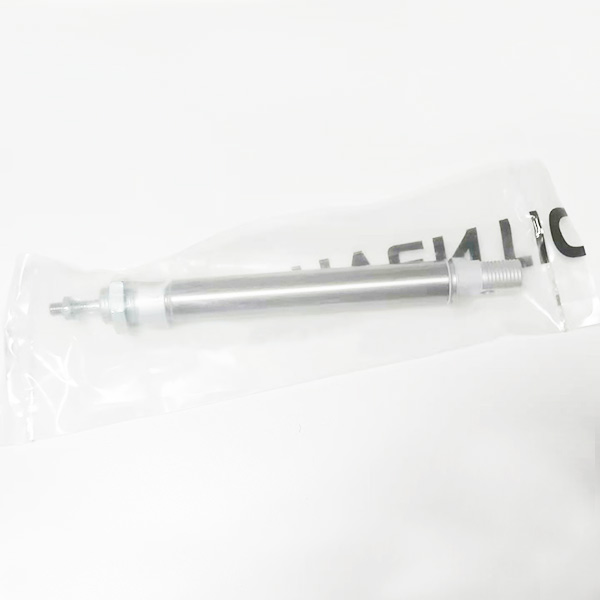

This is Aventics 0822332504 profile cylinder, PRA series (MNI-DA-16-0080-D-31-01-1-00-000-00), 16mm Bore, 80mm Stroke.

This AVENTICS pneumatic profile cylinder can be used on Homag edgebander machine, Homag part number 4-035-01-0641 or 4035010641.


Bore: 16mm

Stroke: 80mm

Rod Diameter: 6mm

Rod End Type: M6

Ports: M5

Mounting Style: Universal

Action: Double

Max Pressure: 10 Bar

Cushion: Both ends

Cylinder Head and Cap Material: Aluminum

Cylinder Sleeve Material: Stainless Steel

Has a removable stroke limiting assembly


Specification of 403501064 pneumatic cylinder:

Description

Series

MNI

Series MNI

Version

DA

Double acting

Piston diameter

16

Diameter 16

Stroke

0080

Stroke in mm

Cushioning

D

Cushioning: pneumatically, adjustable

Piston

31

Piston with magnet ring

Piston rod

01

Single

Sealings

1

Standard PUR

Holding unit

00

Cylinder without holding unit

Piston rod extension

000

Without piston rod extension

Protection class

00

Without protection class

RicoCNC also can supply other models such as: 0822123001, 0822123002, 0822123003, 0822123004, 0822123005, 0822123006, 0822123007, 0822123008, 0822123009, 0822123010, 0822123011.


RicoCNC can offer a wide range of various CNC spare parts and automation parts, and woodworking machine parts.

Welcome to contact us if any inquiries!
