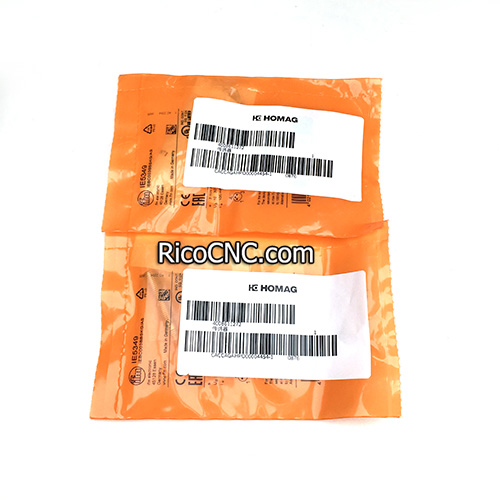

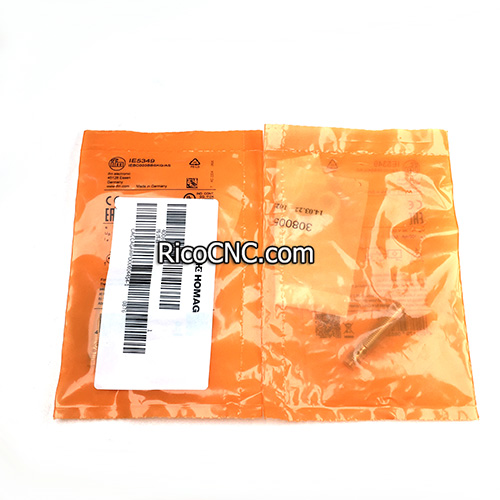

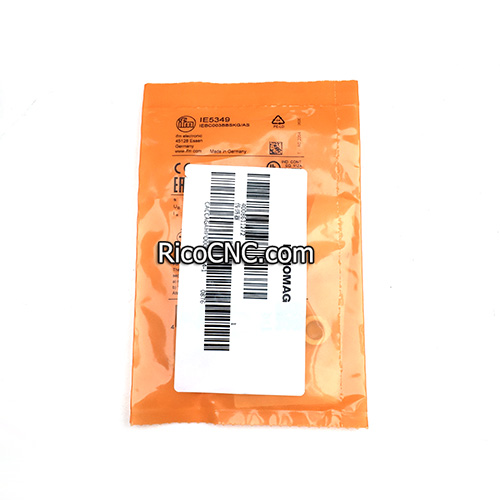

4-008-61-1272 / 4008611272 Inductive Sensor IFM Proximity Switch IE5349 for HOMAG WEEKE
This is the replacement for Homag Sensor inductive, it is PNP/NPN, NC, 3mm range, 800Hz, 10-30DC, M8, IFM IE5349. Homag part number is 4-008-61-1272 or 4008611272.
IFM IE5349 features:
• Particularly short housing
• For use where space is restricted
• Clearly visible indication of the switching status
• Long sensing range for high uptime
• Reduced stock-keeping due to operation as three-wire or two-wire unit
4-008-61-1272 Inductive Sensor IFM IE5349 proximity switch specification:
Inductive sensor M8 x 1
Switching range [Sn] = 3 mm [f]
NC
DC PNP
Protection rating: IP67
2-/3-wire connection
Switching frequency: 800 Hz
M8 connector
There also other inductive sensors for Homag, such as:
4008611272 4-008-61-1272 Inductive Sensor IE5349
4008610712 4-008-61-0712 Inductive Sensor IE5338
4-008-61-0111 4008610111 Sensor inductive Holzma M12X1 L 44/56 SN 4 NO
4-008-61-0158 4008610158 Sensor inductive HOLZMA M12X1 L 44/56 SN 4 NC
4-008-61-0309 4008610309 sensor Proximity PNP M18X1 L=48/59 SN=12 NO
RicoCNC can supply various of Homag/Brandt spare parts, please check our website, if you can not find, please contact us for more information!
