EDS 810-0060-0-024 HYDAC Electronic Pressure Switch for Doosan CNC

EDS 810-0060-0-024 HYDAC Electronic Pressure Switch for Doosan CNC

• EDS 810-0060-0-024
• HYDAC Electronic Pressure Switch Type EDS 810
• Pressure Switch Type EDS 810
• EDS 810 for Doosan CNC machine
• Range bar 60
• Doosan: R37983
• ETAPS0178 switch
• TURRET INDEX CCW. SWITCH(CE)
INQUIRY

EDS 810-0060-0-024 HYDAC Electronic Pressure Switch for Doosan CNC

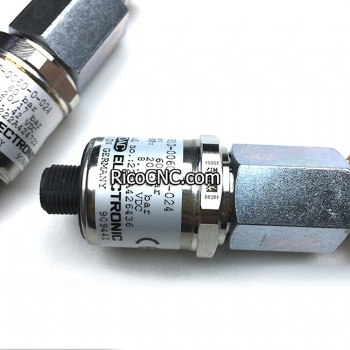

EDS 810-0060-0-024 is a pressure switch which Rance: 60 bar, SP/RSP: 20/17 bar. This HYDAC pressure switch sensor is for Doosan CNC machine. Doosan part no. R37983.

EDS 810-0060-0-024.jpg

The electronic pressure switch EDS 810 has been specially developed for use in volume production machines.

The highly compact instrument is equipped with a very robust pressure sensor with thin-film strain gauge one a stainless steel membrane. The transistor switching output is available with either N/C or N/O function.

Pressure Switch.jpg

The switching and switch-back point of the EDS 810 is factory-set according to customer specification (not field-adjustable).

Various pressure ranges between 0.. 40 bar and 0 .. 600 bar are available.

EDS 810.jpg

HYDAC Electronic Pressure Switch Type EDS 810.jpg

Below is the specification:

Input data
Measuring ranges bar	40	60	100	160	250	400	600
Overload pressures bar	80	120	200	320	500	800	1000
Burst pressure bar	200	300	500	800	1250	2000	2000
Mechanical connection	G1/4 A ISO 1179-2 7/16-20 UNF 2A 9/16-18 UNF 2A


Tightening torque, recommended	15 Nm (7/16-20 UNF 2A) 20 Nm (G1/4 A ISO 1179-2, 9/16-18 UNF 2A)

Parts in contact with fluid	Mech. connection: Stainless steel Seal: FKM

Output Date
Switching output	- 1 PNP or 1 NPN transistor output - 2 PNP transistor outputs (only in conjunction with electrical connection M12x1, 4 pole, DT04-4p, DIN 72585-4p) Switching current: ≤ 500 mA per switching output Switching cycles: > 100 million Switch point/switch-back point: acc. to customer specifi cation Switch-on and switch-off delay: 8 .. 2000 ms (standard 32 ms); factory-set acc. to customer specifi cation










Accuracy acc. to DIN 16086, terminal based	≤ ± 0.5 % FS typ.
	≤ ± 1 % FS max.
Temperature compensation, zero point	≤ ± 0.02 % FS / °C typ. ≤ ± 0.03 % FS / °C max.

Temperature compensation, span	≤ ± 0.02 % FS / °C typ. ≤ ± 0.03 % FS / °C max.

Repeatability	≤ 0.1 % FS max.
Long-term drift	≤ ± 0.3 % FS typ. / year

HYDAC Electronic Pressure Switch.jpg
