IFM Efector OLB-FKOA/SL/LS OL0014 Diffuse Reflection Sensor

IFM Efector OLB-FKOA/SL/LS OL0014 Diffuse Reflection Sensor

This Diffuse Reflection Sensor part number is OL0014, OLB-FKOA/SL/LS-500, made by IFM Efector.

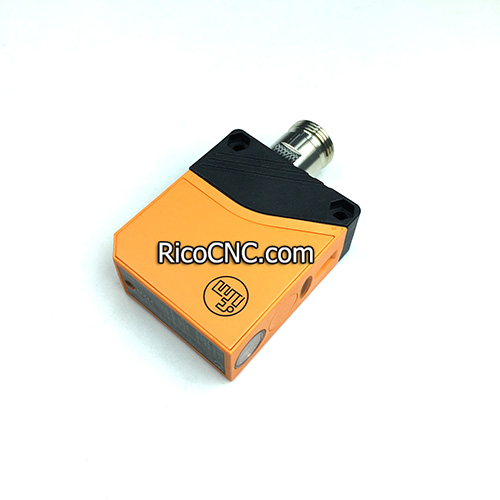

OL0014 IFM.jpg

OL0014 IFM features:

• Very long range

• Programmable light-on/dark-on mode via pushbutton

• With combined AC/DC output and relay output

• LED display to check operation, switching status and function

• Robust housing for use in harsh industrial environments

Diffuse reflection sensor.jpg

IFM Efector OL0014 Photoelectric Sensor.jpg

OLB-FKOA:SL:LS-500-OL0014 by EFECTOR.jpg

Product characteristics
Type of light	Infrared light
Housing	rectangular
Application
Function principle	Diffuse reflection sensor
Electrical data
Frequency AC [Hz]	47...63
Operating voltage [V]	20...250 AC/DC
Max. power consumption [VA]	4
Protection class	I
Reverse polarity protection	no
Type of light	Infrared light
Wave length [nm]	880
Typ. lifetime [h]	100000
Reference temperature for service life [°C]	25
Outputs
Electrical design	Relay
Output function	light-on/dark-on mode; (programmable)
Contact rating	250 V AC / 3 A / 960 VA, 125 V DC / 5 A / 120 W
Switching frequency AC [Hz]	10
Switching frequency DC [Hz]	10
Short-circuit proof	no
Overload protection	no
Monitoring range
Range [mm]	1...800; (white paper 200 x 200 mm 90 % remission)
Range adjustable	yes
Max. light spot diameter [mm]	80
Light spot dimensions refer to	at maximum range
Operating conditions
Ambient temperature [°C]	-25...80
Protection	IP 67
Mechanical data
Weight [g]	203.5
Housing	rectangular
Material	PA; PBT
Lens material	PMMA
Lens alignment	Side sensing
