4011041266 Homag 4-011-04-1266 Aventics Pneumatic Valve 0820060076

4011041266 Homag 4-011-04-1266 Aventics Pneumatic Valve 0820060076

• 4-011-04-1266 Homag solenoid valve
• Homag electro-valve
• 4011041266
• 0820060076 Aventics Pneumatic Valve
• 4-011-04-1266 monostable Homag valve
• TC08-5/2XX-AS-024DC-I-FORM_C-SGL
• AVENTICS 5/2 Pneumatic Solenoid Valve
• Electro-valve 5/2 G1/8 TC08 MONOST
INQUIRY

4011041266 Homag 4-011-04-1266 Aventics Pneumatic Valve 0820060076

This AVENTICS 5/2 Pneumatic Solenoid Valve 0820060076, Series TC08, TC08-5/2XX-AS-024DC-E-FORM_C-SGL. It used as Brandt / Homag / Weeke solenoid valve, part number is 4011041266 or 4-011-04-1266

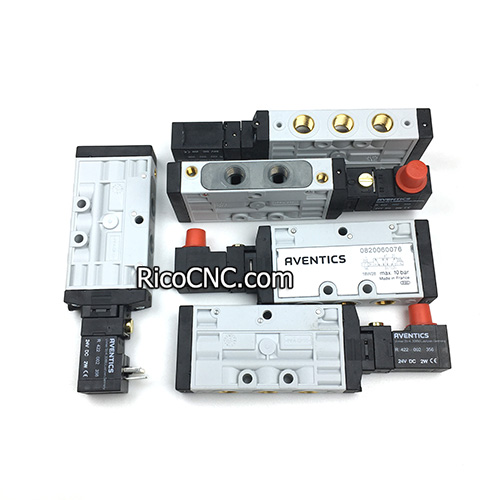

0820060076 Aventics Pneumatic Valve.jpg

4-011-04-1266 TC08 G1/8 Valves is a large flow from a 17mm wide body of 800 l/min for all 5 / 2 functions and 700 l/min for all 5 / 3 functions. This range of valves can also be mounted together on a 'P' stip manifold.

Spool valve, Non Overlapping

Form 'C' or M8 electrical connection options

External Pilot option allowing vacuum applications

Manual override with detent

Maximum partivle size 5μm

Oil content of compressed air 0 → 5mg/m3

100% duty cycle

Polyamide glass-fibre reinforced body

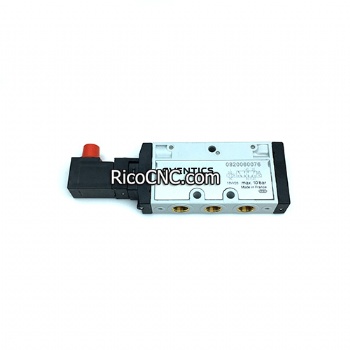

Homag electro-valve.jpg

Attribute	Value
Manufacturer Series	TC08
Mounting Style	Manifold
Function	5/2
Connection Port Thread	G 1/8
Actuation Type	Pilot/Pilot
Solenoid Fitted	Yes
Body Material	Fibreglass Reinforced PA
Maximum Flow Rate	800L/min
Solenoid Voltage	24V dc
Solenoid Power Consumption	2W
Minimum Operating Pressure	-0.9bar
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+50°C
Number of Ports	5/2
Maximum Operating Pressure	10 bar
Thread Size	1/8in
Thread Standard	G
