Products > Homag Spare parts

4-011-04-1204 4011041204 Pressure Regulator with Filter G1-2 AS3-FRE AVENTICS R412007185

4-011-04-1204 4011041204 Pressure Regulator with Filter G1-2 AS3-FRE AVENTICS R412007185

• 4011041204 Pressure regulator
• 4-011-04-1204 Pressure regulator Homag
• Pressure regulator with filter G1/2 AS3-FRE
• AVENTICS R412007185
• Regulator AS3-FRE
• Air pressure regulator with filter R412007185
• Homag control valve
• Homag pressure valve
INQUIRY

4-011-04-1204 4011041204 Pressure Regulator with Filter G1-2 AS3-FRE AVENTICS R412007185

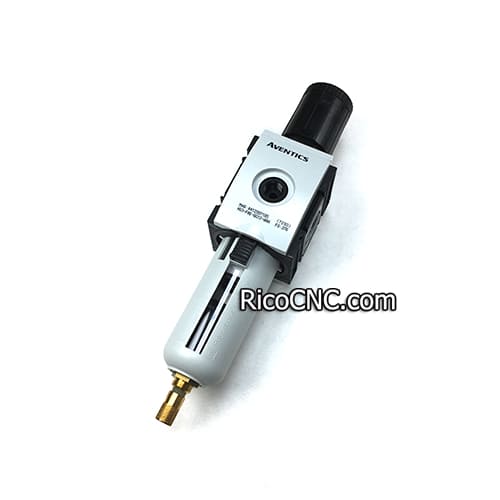

This is a AVENTICS R412007185 pressure control valve, used for Homag machine OPTIMAT BHX 050 / BHX 055, Homag part number is 4-011-04-1204 or 4011041204.

4-011-04-1204 Pressure regulator Homag.jpg

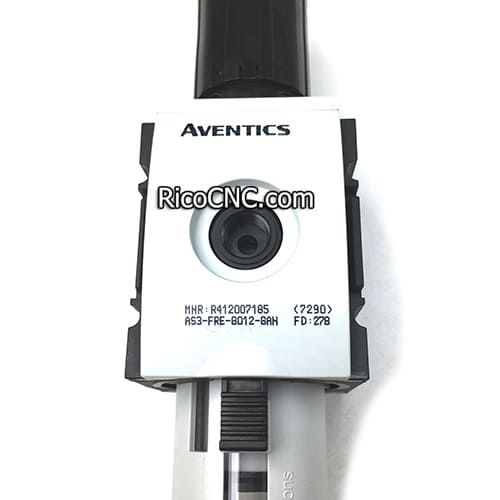

AVENTICS R412007185 – G1/2, ATEX Rated, 1.5-16 Max BAR, Fully-Automatic Drain, Series AS3-FRE Filter Pressure Regulator (AS3-FRE-G012-GAN-080-PBP-AO-05.00)

Regulator AS3-FRE.jpg

The AVENTICS Series AS3 is a versatile and adaptable maintenance unit suitable for a wide range of pneumatic applications. With its compact and lightweight design, it is easy to install and operate. The AS3 is a modular system, which means it can be configured to meet the specific needs of each application.

It also offers easy maintenance, with simple and quick access to filters and other components for cleaning or replacement.

Overall, the AVENTICS Series AS3 is a reliable and efficient solution for pneumatic maintenance and control.

AVENTICS R412007185.jpg

4-011-04-1204 4011041204 Pressure Regulator R412007185 Pneumatic filter pressure regulator specification:

Weight	0.606 kg
Pneumatic port	G 1/2
Reservoir for filter	polycarbonate, reservoir, with PA protective guard
Condensate Drain	fully automatic, open without pressure
Flow Qn	5100l/min
Protective guard	with protective guard
Ambient Temperature Max	50DegC
Ambient Temperature Min	-10DegC
Working Pressure Max	16 Bar
Working Pressure Min	1.5 Bar
