Festo Compact Air Cylinder 536309 ADN-50-27-A-P-A

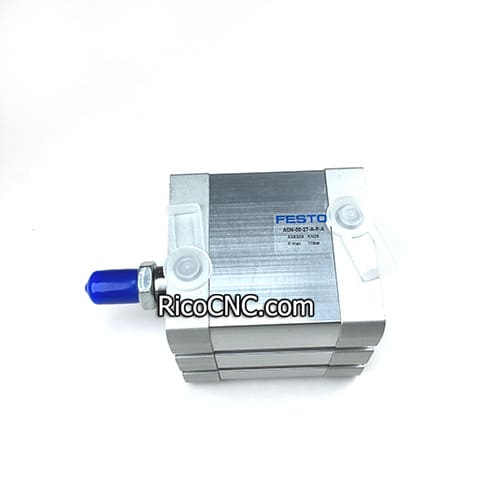

This is a compact pneumatic air cylinder, made by FESTO, it is an ADN50 series, model number is 536309, mfr part number is ADN-50-27-A-P-A. It is a short-stroke and flat cylinder that can be used for CNC machines.

536309 FESTO - ADN.jpg

FESTO 536309 ADN-50-27-A-P-A specification:

Material cylinder barrel	Wrought aluminium alloy Smooth anodised	Material piston rod	High-alloy steel
Material cover	Aluminium Anodised	Note on materials	RoHS-compliant
Pneumatic connection	G1/8	Type of mounting	With through-hole Via female thread With accessories Either:
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke	1.057 N ... 1.178 N	Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke	1.057 N
Ambient temperature	-40 °C ... 120 °C	Cleanroom class	Class 4 according to ISO 14644-1 Class 5 according to ISO 14644-1
Suitability for the production of Li-ion batteries	Metals with more than 1% copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils	LABS (PWIS) conformity	VDMA24364-B1/B2-L VDMA24364 zone III
Corrosion resistance class CRC	0 - No corrosion stress 2 - Moderate corrosion stress 3 - high corrosion stress	Note on operating and pilot medium	Lubricated operation possible (in which case lubricated operation will always be required)
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4]	Explosion ambient temperature	-20°C <= Ta <= +60°C
Explosion ignition protection type for dust	Ex h IIIC T120°C Db	Explosion ignition protection type for gas	Ex h IIC T4 Gb
ATEX category dust	II 2D	ATEX category gas	II 2G
Explosion protection	Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)	CE marking (see declaration of conformity)	To UK EX instructions
Operating pressure	0,6 bar ... 10 bar	Mode of operation	Double-acting
Position detection	Via proximity switch	Design	Piston Piston rod Profile barrel
Mounting position	optional	Cushioning	Elastic cushioning rings/plates at both ends Self-adjusting pneumatic end-position cushioning
Based on standard	ISO 21287	Piston diameter	50 mm
Stroke	1 mm ... 400 mm
