Rotoflux Spindle Rotary Joints A10-1701-05L for High Speed Application and Dry Run

This is a rotary joints for high speed application and dry run, made by ROTOFLUX, the model number is A10-1701-05L and it is series A 90 degree unions. This union has been designed for machine tool spindles rotating at high speed with fluid passing through or dry when needed.

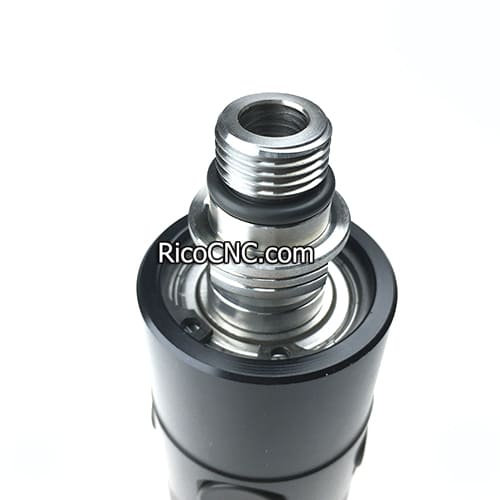

Rotoflux rotary joint.jpg

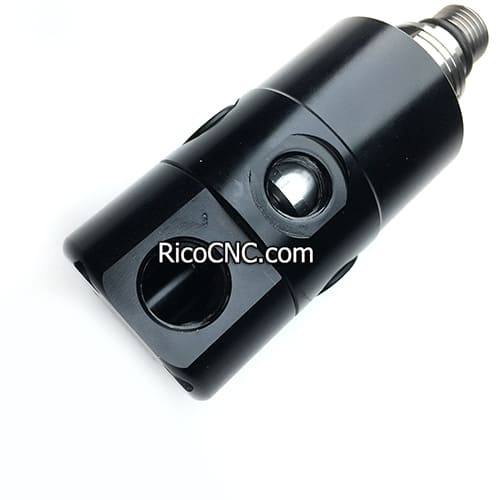

spindles rotating part.jpg

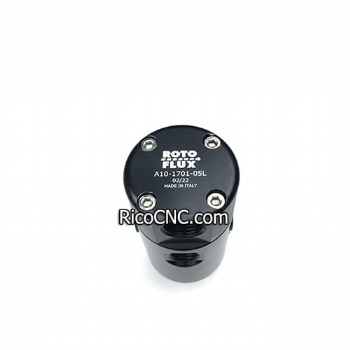

Series A 90°Unions.jpg

The seals, balanced and microlapped, remain always closed without problems both with fluid passing through (wet run) or without fluid (dry run). Do not use the unions at max application limits without consulting ROTOFLUX.

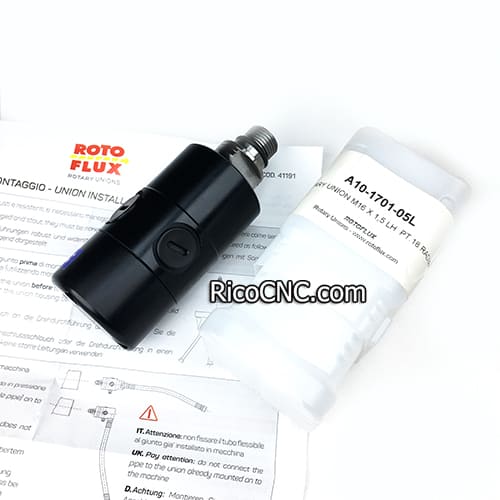

CNC spindle rotary joints.jpg

A10-1701-05L series A 90 degree unions specification:

Code	90°Unions
	A	B	ØD	E	ØF1	ØF2	ØG	H	I	L	ØP	Q	U	ØV	Z
A08-1501-04R	M16 × 1.5 RH	G 1/4"	5	91	34	34.4	24.5	17	16	66	18	4.6	35	38	41
A08-1501-05L	M16 × 1.5 LH
A10-1701-04R	M16 × 1.5 RH	G 3/8"	9	110	43	44	24.5	17	16	82	18	4.5	43.6	47.5	53.5
A10-1701-05L	M16 × 1.5 LH

Series A 90 degree Unions.jpg

Rico can supply various rotary unions from ROTOFLUX. such as:

Rotoflux Spindle Rotary Joints A10-1701-05L for High Speed Application and Dry Run

A10-1371-05L A10-1301-05L ROTOFLUX Rotary Union High Speed Rotary Joint

ROTOFLUX A08-1501-05L Rotary Union High Speed Spindle Rotary Joint

ROTOFLUX A10-1771-05L Rotary Joint for High Speed Application

Also other brand, such as RIX, Deublin, SMARTC, Original Kwang Jin, etc.

Rotoflux for high speed application and dry run.jpg

There are also other top 4 brand rotary joints can be supplied here: DEUBLIN Rotary Joint, ROTOFLUX Rotary Joint, OTT-JAKOB Rotary Joint, SMARTC Rotary Joint. Please contact RicoCNC for more information!
