Homag 4011041619 4-011-04-1619 AVENTICS R412010572 Air Throttle Valve

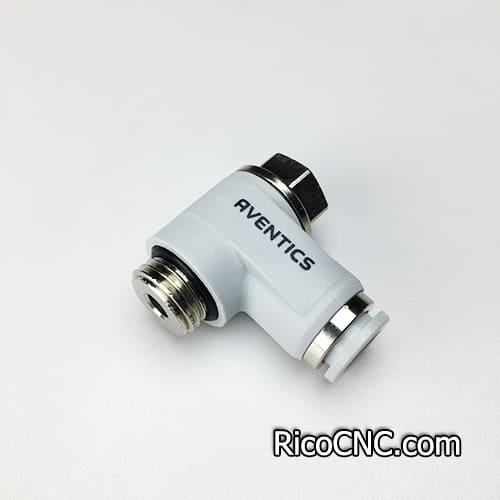

This part is AVENTICS Check-choke valve, Series CC04 R412010572, G1/4 D=8. It can be used on Homag / Holzma / Ligmatech woodworkimg machines. Homag replacement part number is 4011041619 or 4-011-04-1619.

4011041619 Homag air throttle valve.jpg


Specification of Homag 4-011-04-1619 Air Throttle Valve

Part number

R412010572

Port 1

Ø 8

Port 2

G 1/4

Throttle bore Ø

4.5 mm

Weight

380g

Compressed air connection type 1

push-in fitting

Compressed air connection type 2

External thread

Throttle

Exhaust Air Throttling

Medium

Compressed air

Working pressure min.

0.5 bar

Working pressure max

10 bar

Min. ambient temperature

-10 °C

Max. ambient temperature

60 °C

Min. medium temperature

-10 °C

Max. medium temperature

60 °C

Housing material

Polyamide

direction of throttle

2 1

Nominal flow Qn 2 to 1

490 l/min

Seal material

Acrylonitrile butadiene rubber

Material compressed air connection

Brass

AVENTICS R412010572 Air Throttle Valve.jpg

AVENTICS R412010572.jpg
A range of Homag machine spare parts and industrial components are available here.
If you are looking for Homag spare parts, welcome to contact us!
